What is Windows Autopilot Device Preparation ?

If you’ve been deploying Windows devices in enterprise environments over the last few years, you’re probably familiar with the original Windows Autopilot — a powerful but sometimes frustrating solution that required device pre-registration, complex OOBE configuration, and left IT teams with very limited visibility into what was happening during provisioning.

Microsoft heard the feedback. In 2024, they introduced Windows Autopilot Device Preparation , internally referred to as Autopilot v2 , a fully redesigned provisioning experience built from the ground up to address the gaps that made Autopilot v1 painful to operate at scale.

At its core, the concept hasn’t changed: a new Windows 11 device leaves the OEM factory, reaches the end user, and is automatically configured into a corporate-ready state without IT ever having to touch it physically. What has changed is everything underneath: the grouping mechanism, the app deployment engine, the reporting, and the profile model.

Autopilot v1 vs Autopilot v2 : What Changed ?

Before diving into configuration, it’s important to understand why v2 exists and what concrete problems it solves. I’ve deployed both in production environments and the differences are significant.

Feature	Autopilot v1	Autopilot v2 (Device Preparation)
Device Pre-Registration	Required (hardware hash)	Not required
OS Support	Windows 10 & 11	Windows 11 only (22H2+)
Join Type	Entra + Hybrid AD	Entra ID only
Device Group Assignment	Dynamic (slow)	Enrollment Time Grouping (instant)
App Types During OOBE	LOB + Win32	LOB + Win32 + Store + Enterprise Catalog
App Limit	No explicit limit	10 apps max selected in policy
Script Support	Yes	Yes (up to 10)
Real-Time Deployment Monitoring	No	Yes (near real-time)
User Role	Standard or Admin	Standard user by default
Diagnostic Log Export from OOBE	Limited	Built-in export
GCCH/DoD Support	No	Yes

Autopilot v2 does NOT support Hybrid Azure AD Join or Windows 10. If your environment still relies on on-premises domain join or has devices running Windows 10, you must continue using the classic Autopilot v1 for those scenarios.

Requirements & Prerequisites

Before you touch the Intune admin center, make sure your environment checks all four requirement categories. Missing any one of these will cause the deployment to silently fall through to a standard OOBE — without any error message telling you why.

Software	Licensing	Networking	Configuration
* Windows 11 22H2 or higher * Pro, Pro Education, Enterprise, Education editions	* Microsoft Intune Plan 1 or higher * Microsoft Entra ID Plan 1 or higher	* Port 443 (HTTPS) to Microsoft endpoints * Port 80 (HTTP), Port 123	* Automatic MDM enrollment enabled * Users can join devices to Entra ID * Intune enrolled devices * Device NOT pre-registered as Autopilot v1

Autopilot v2 Mindmap

Step-by-Step Configuration Guide

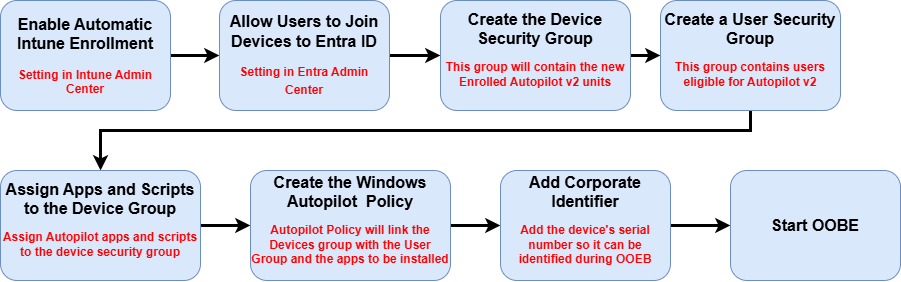

The following walkthrough covers a complete User-Driven Microsoft Entra Join deployment using Autopilot v2. This maps to Microsoft’s 7-step workflow. I’ll go through each step with the exact admin center navigation path and the settings that matter.

1 – Enable Automatic Intune Enrollment

Automatic enrollment is the mechanism that tells Windows to automatically register with Intune when it joins Entra ID. Without this, devices will join Entra but never enroll in Intune and the Autopilot policy will never land.

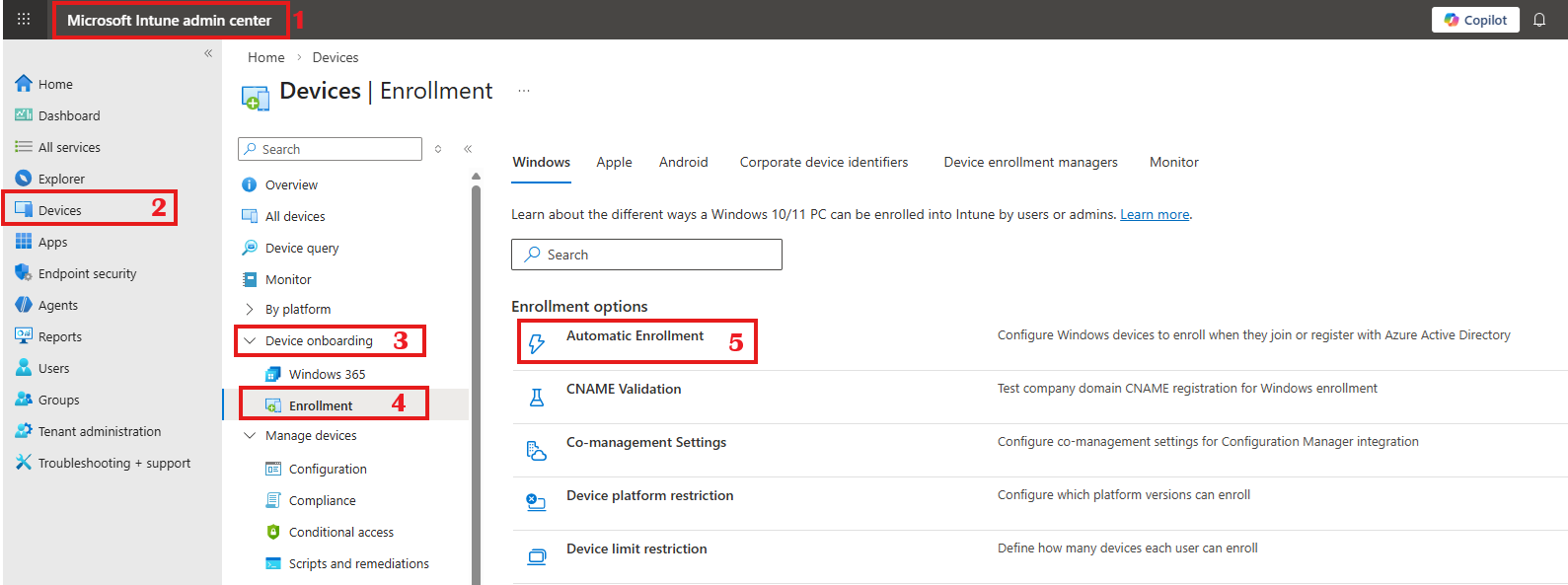

Microsoft Intune Admin Center → Devices → Device Onboarding → Enrollment → Automatic Enrollment

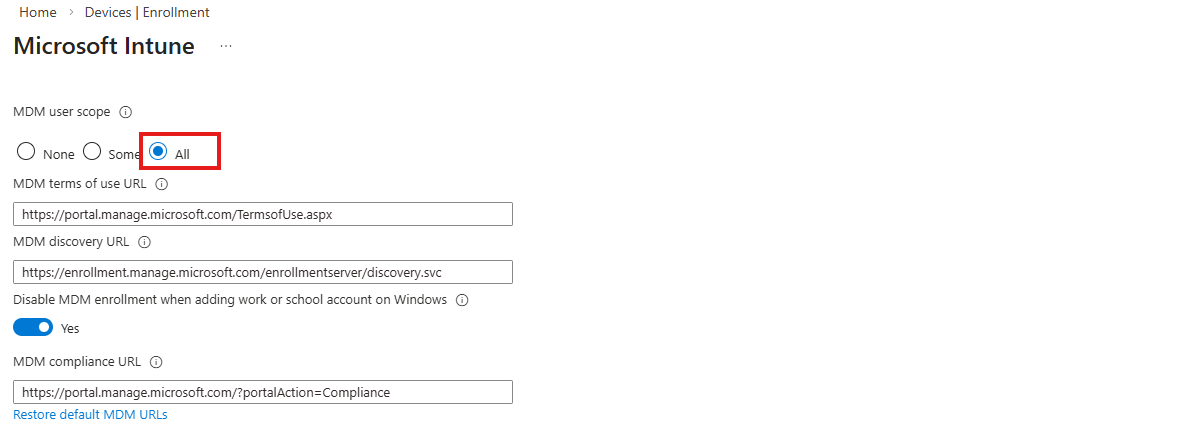

Set MDM User Scope to All (or a scoped group in larger environments). Confirm the MDM URLs are pre-populated with Intune’s enrollment URLs. Do not modify them.

If you use a scoped group here, ensure every user who will trigger an Autopilot v2 deployment is a member of that group. A user outside the MDM scope will hit a standard OOBE with no corporate config applied.

2 – Allow Users to Join Devices to Entra ID

Autopilot v2 joins devices to Entra ID during OOBE. For this to succeed, the users must have permission to perform that join.

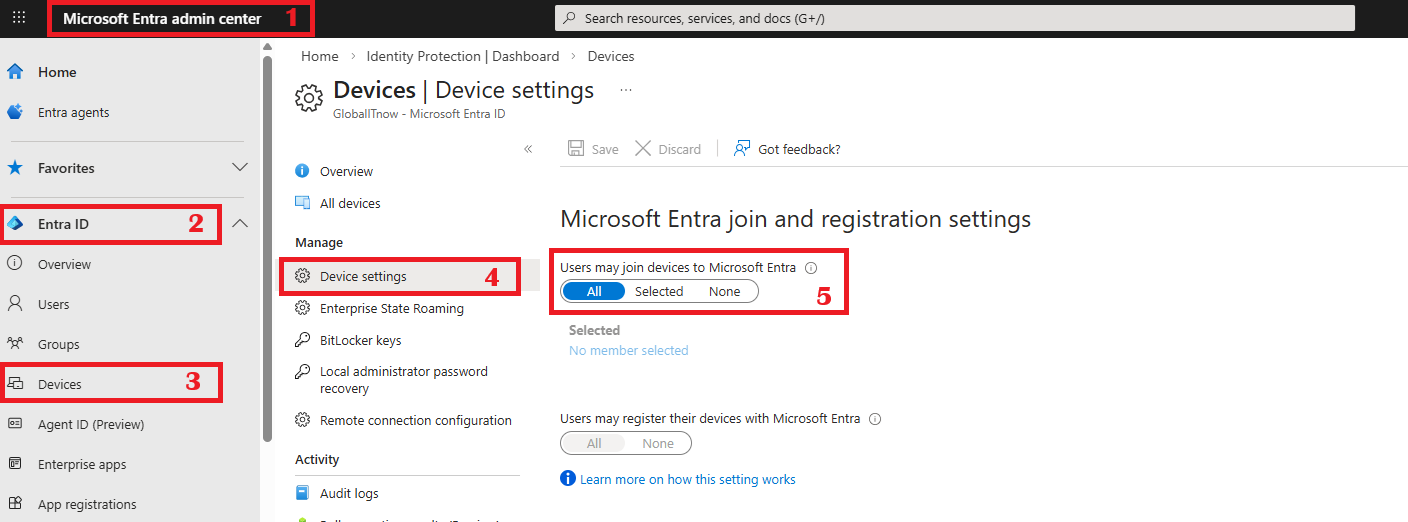

Microsoft Entra Admin Center → Devices → Device Settings

Set Users may join devices to Azure AD to All or a specific group.

In environments where you want to restrict who can onboard devices, use a security group and add your target population.

3 – Create the Device Security Group (ETG Target)

This is the static security group that the device will be added to the moment it enrolls. All apps and scripts you want deployed during OOBE must be assigned to this group.

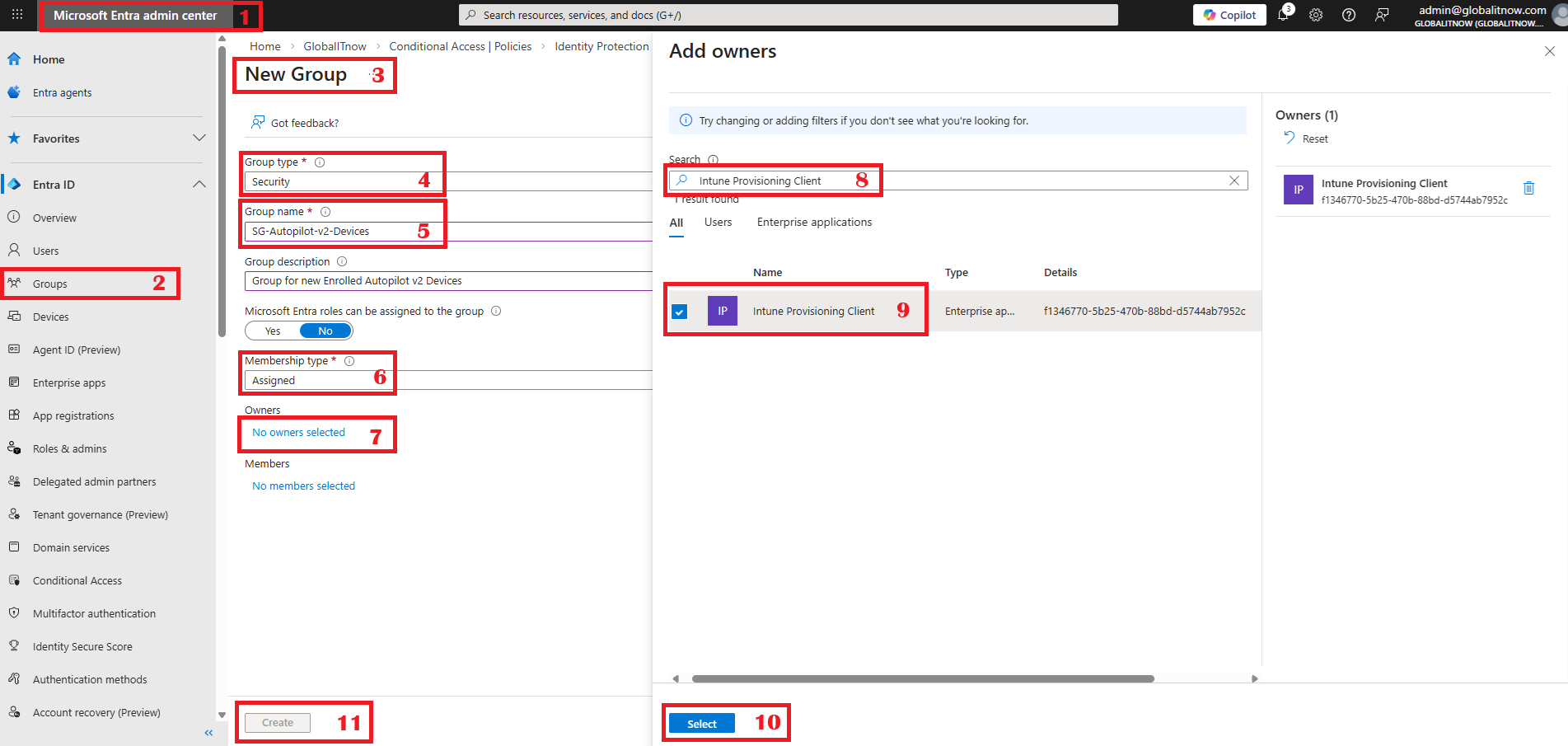

Microsoft Entra Admin Center → Groups → New Group
Set Group type to Security → Enter the Group name (e.g., SG-Autopilot-v2-Devices) → Set Membership type to Assigned
Click Owners → No owners selected → Search for Intune Provisioning Client → Select Intune Provisioning Client → Click Select
Click Create

“Intune Provisioning Client” is by default M365 Entreprise application with static name and static ID : “f1346770-5b25-470b-88bd-d5744ab7952c“. You can search for this group owner by name or by ID.

4 – Create a User Security Group

The Autopilot v2 policy is assigned to users, not devices. Create a user security group containing all users who should trigger an Autopilot v2 deployment when they sign into a new device.

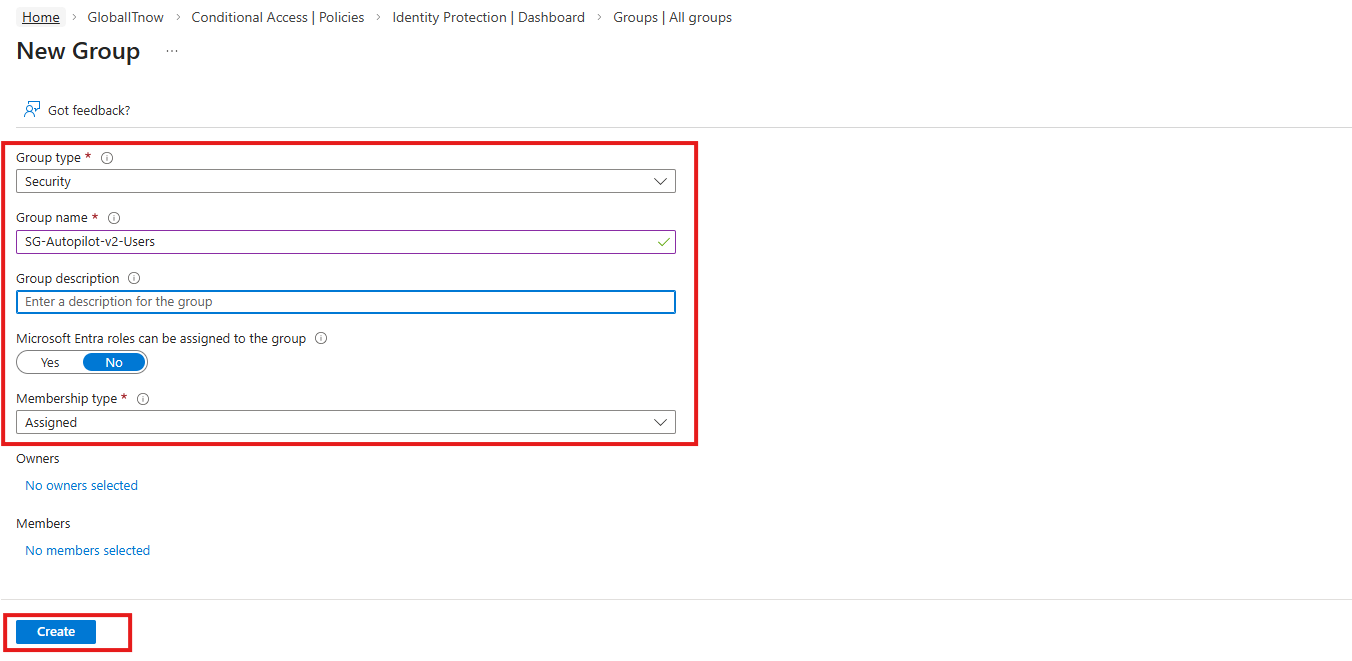

Microsoft Entra Admin Center → Groups → New Group
Set Group type to Security → Enter the Group name (e.g., SG-Autopilot-v2-Users) → Set Membership type to Assigned
Click Create

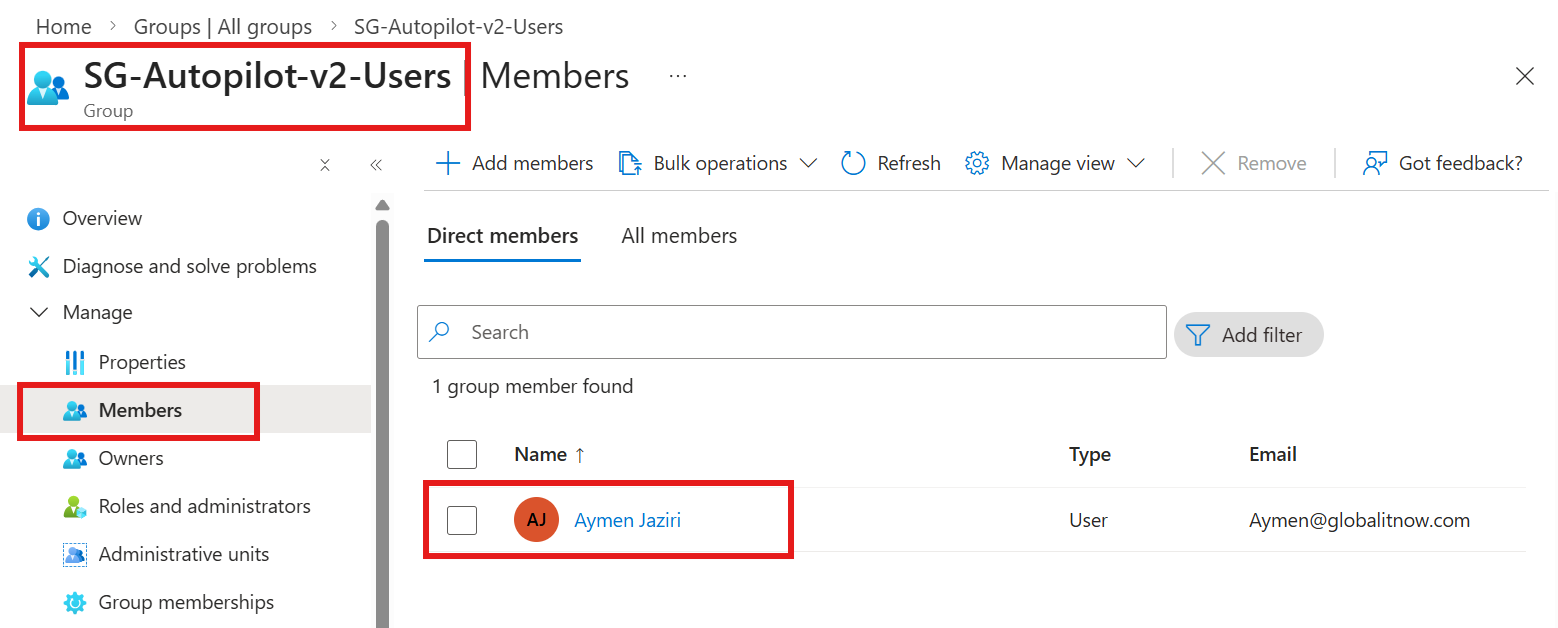

Once the group has been created, I will add a user eligible for AUtopilot v2

5 – Assign Apps and Scripts to the Device Group

Before creating the policy, prepare your apps and scripts. They must be assigned to the device security group you created in Step 3. Only assigned apps/scripts can be selected in the policy.

Intune Admin Center → Apps → [Select app] → Properties → Assignments
For each app you want deployed during OOBE:
- Add the device group (SG-Autopilot-v2-Devices) as a Required assignment
Supported types : Win32, LOB (.intunewin), Microsoft Store, Enterprise App Catalog
- Maximum of 10 apps can be selected in the policy for OOBE deployment
For PowerShell scripts :
- Intune Admin Center → Devices → Scripts → [Select script] → Assignments

Keep OOBE deployments lean. Only include apps that are truly business-critical and must be present before the user first touches the desktop. Everything else can deploy in the background post-login. This keeps deployment time fast and reduces the chance of OOBE failure.

6 – Create the Windows Autopilot Device Preparation Policy

This is the central policy that ties everything together. Navigate to :

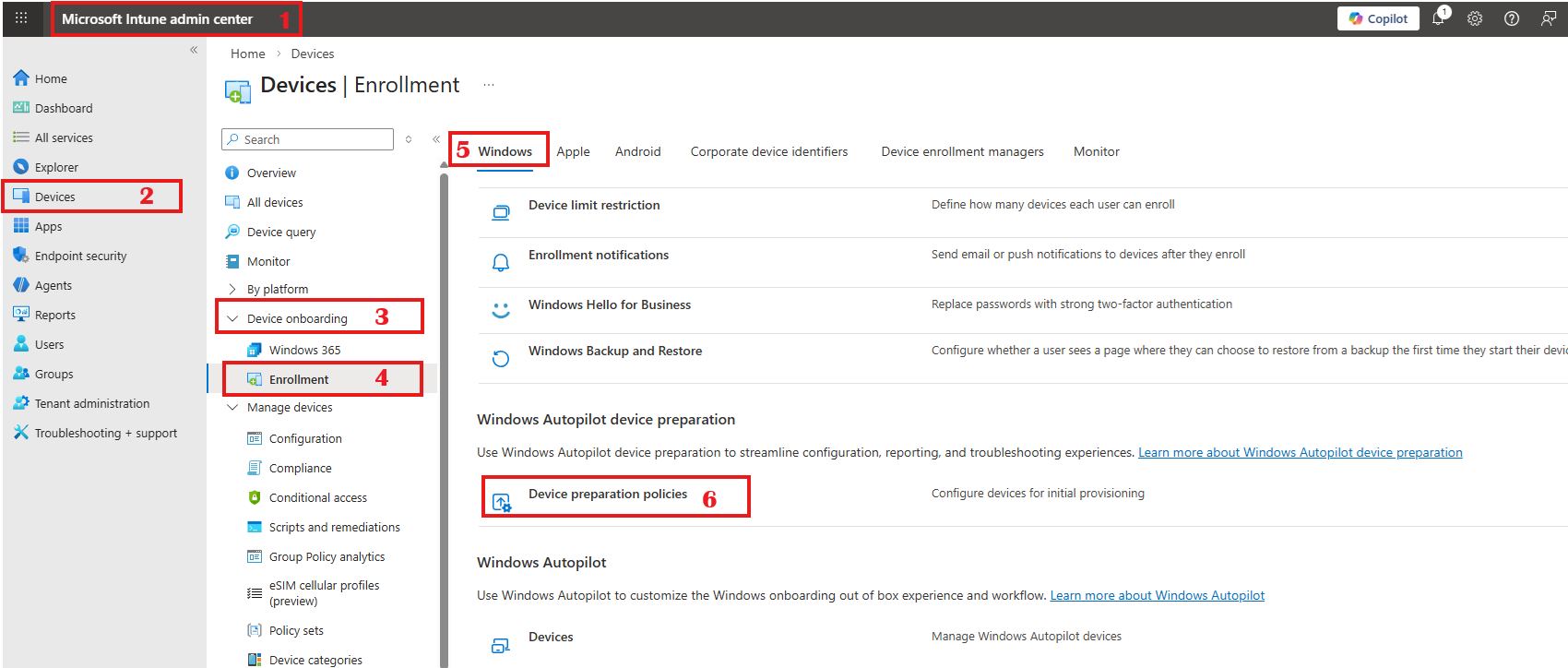

Intune Admin Center → Devices → Enrollment → Windows → Device preparation Policies

Click + Create (User-Driven)

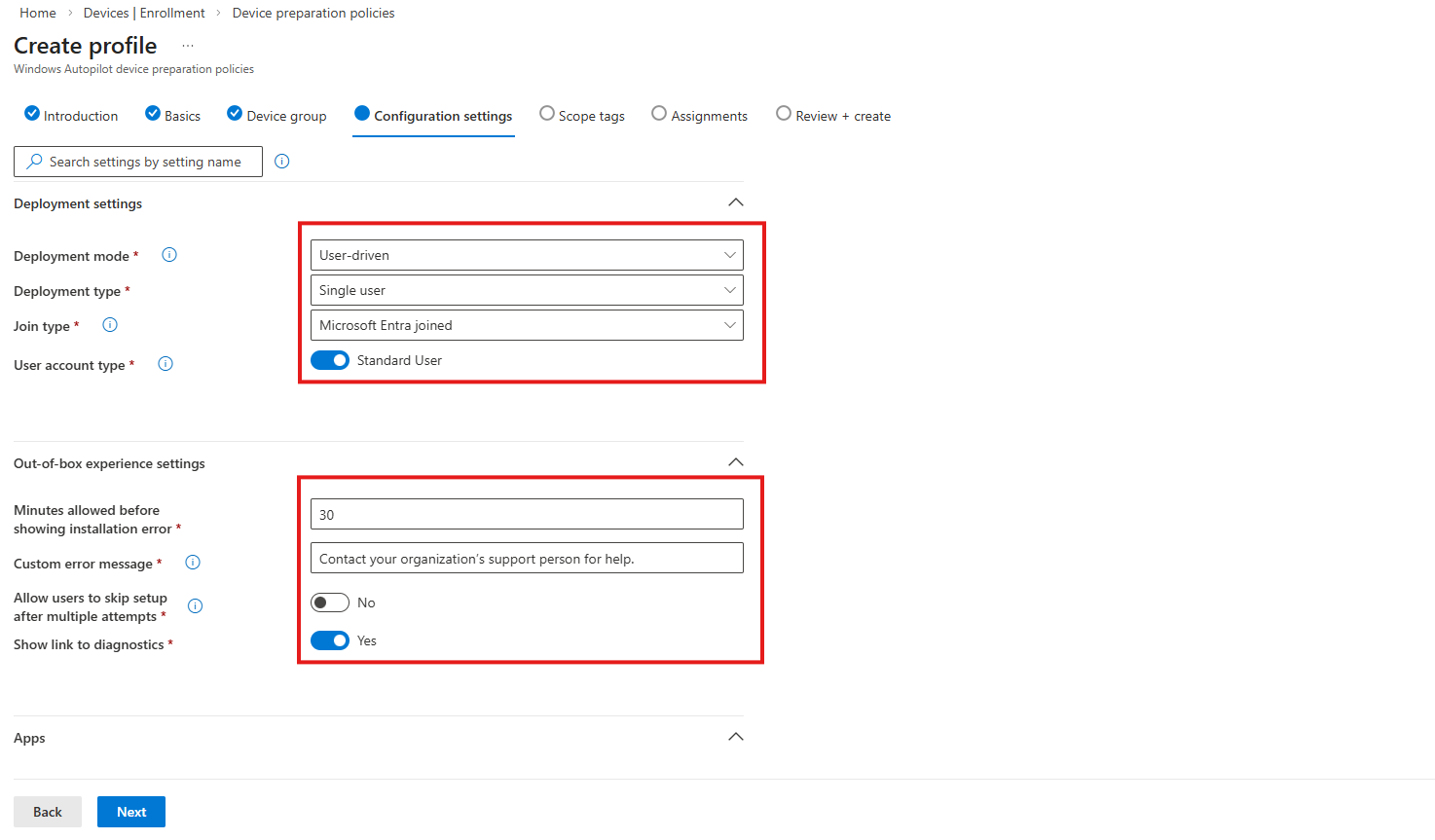

Configure the following settings :

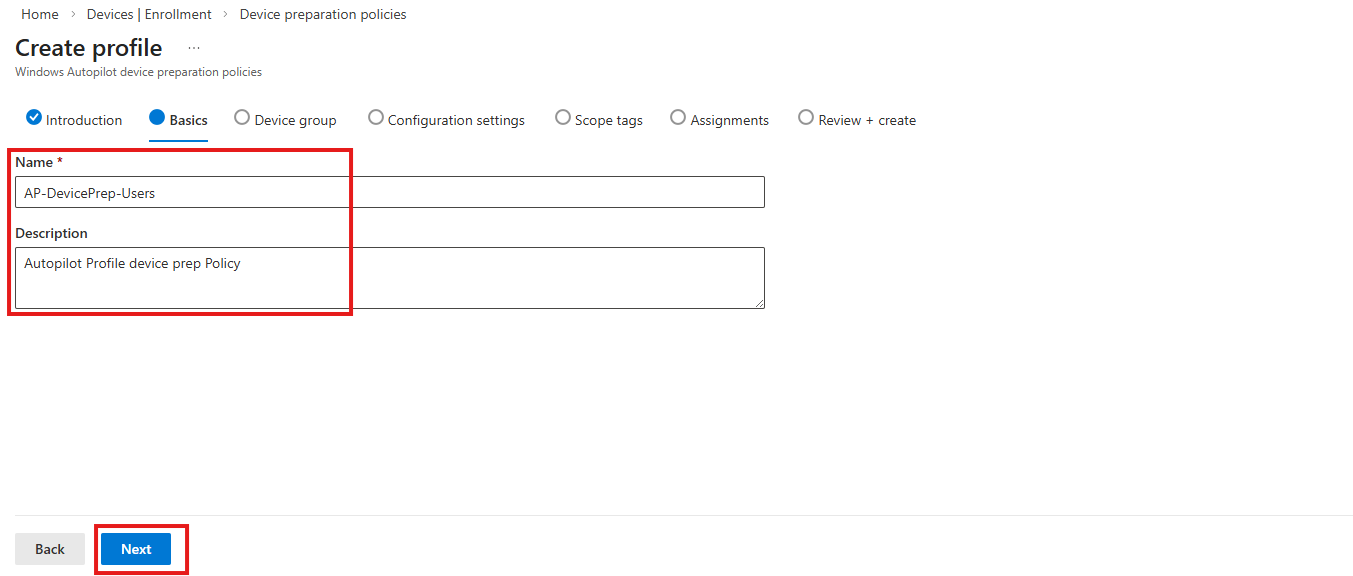

Setting	Recommended Value	Notes
Name	`AP-DevicePrep-Users`	Use a naming convention
Deployment mode	User-driven	Most common for corporate devices
Join type	Microsoft Entra join	Only option available

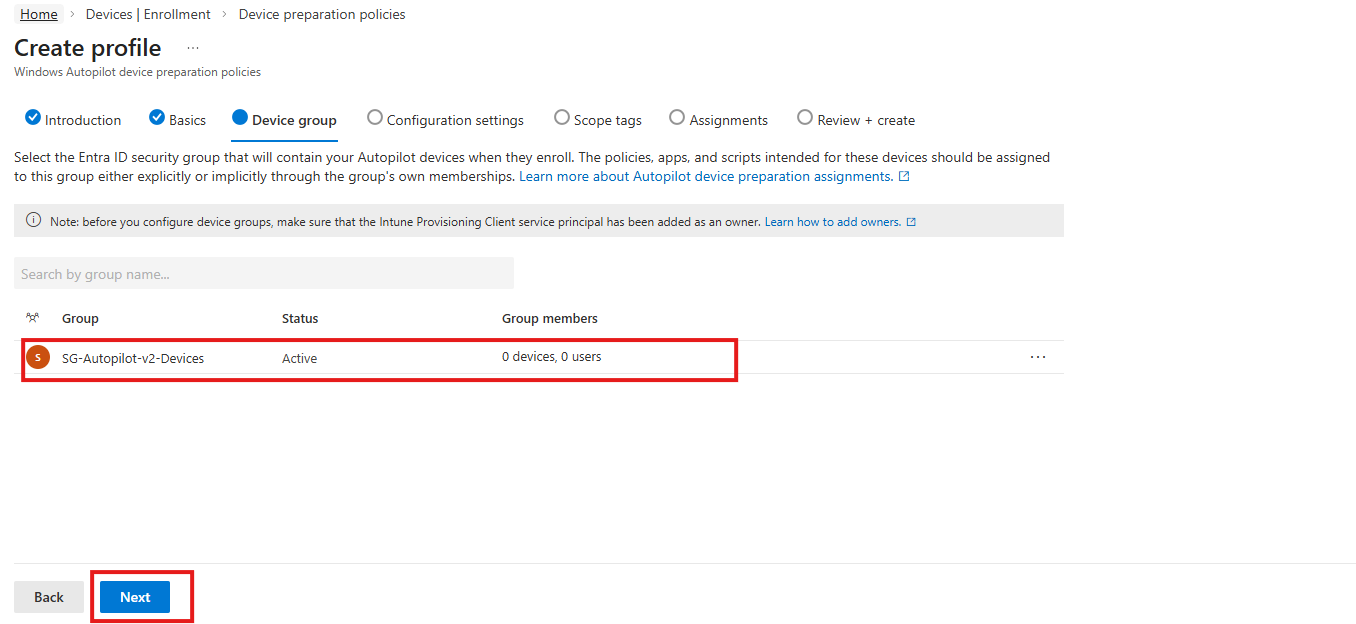

Device group	`SG-Autopilot-v2-Devices`	Must be static security group
User account type	Standard User	Remove admin rights at end of OOBE
Applications	Select up to 10	Must be assigned to device group
PowerShell scripts	Select up to 10	Must be assigned to device group
Allowed minutes for app install	60 minutes	Increase for large apps

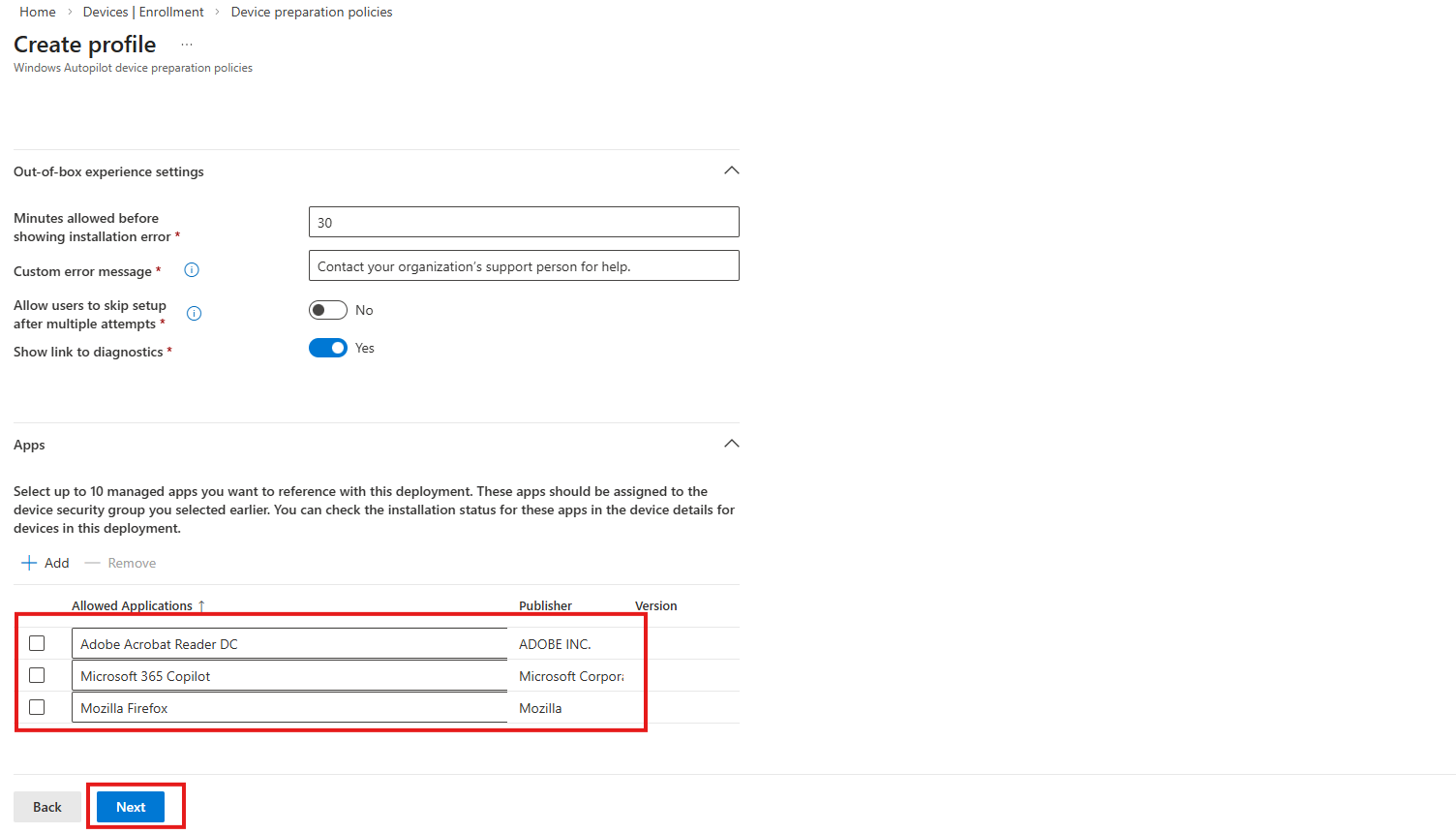

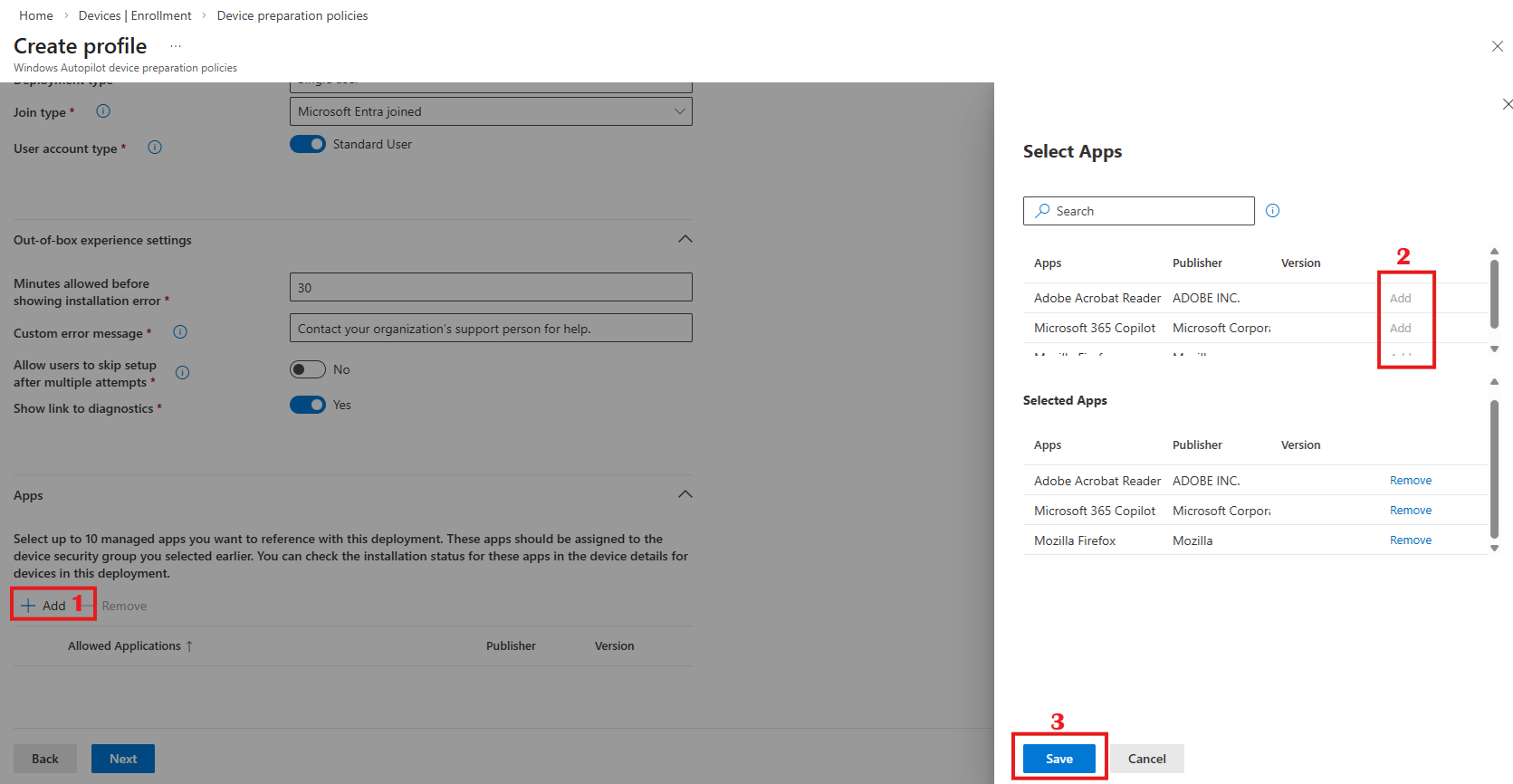

Select Apps to be installed with Autopilot v2 Enrollement (up to 10 Apps)

In my case 3 Apps added.
Click Next

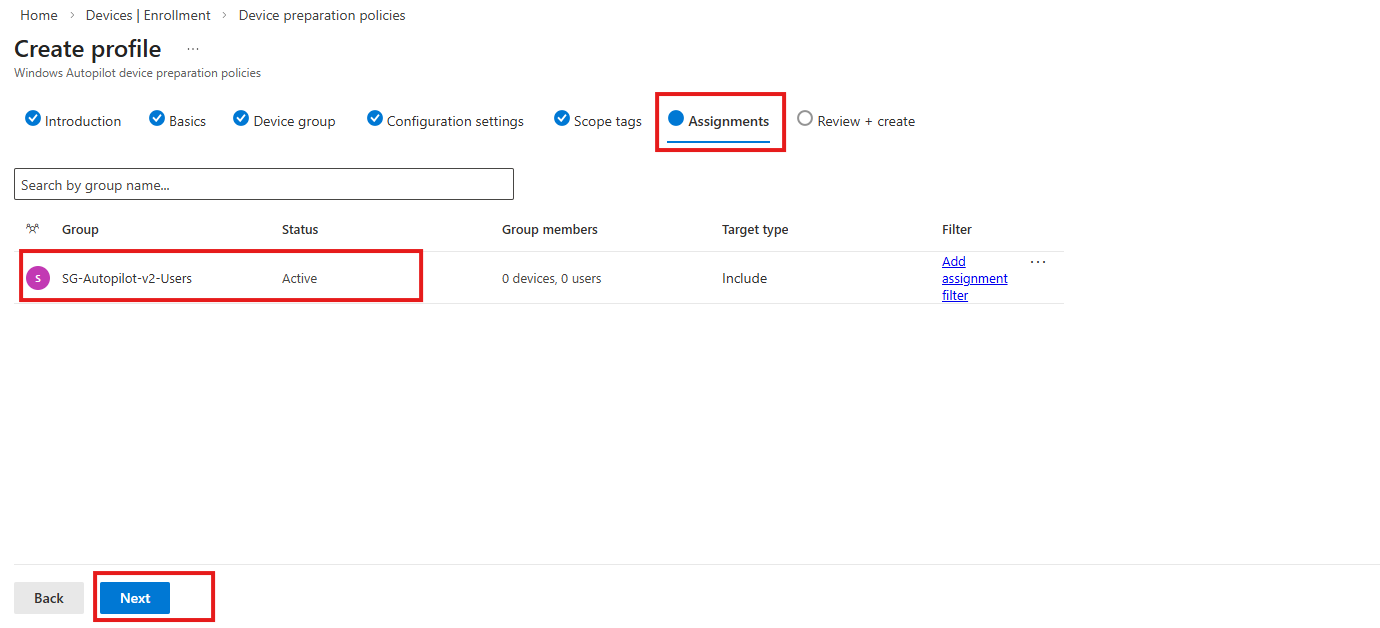

Select Autopilot Users Security Group recently created

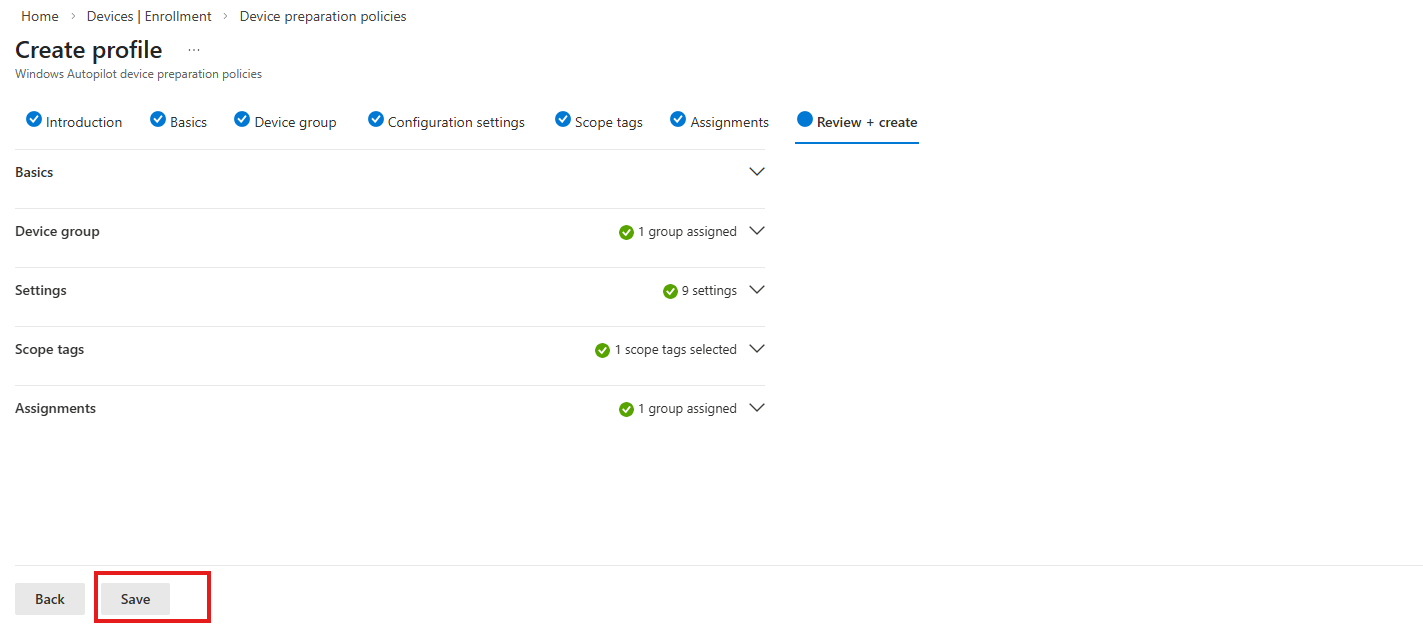

Click Save

7 – Add Corporate Identifier

Corporate Identifiers allow you to pre-register devices by serial number, manufacturer, and model ensuring that only trusted hardware can trigger your Autopilot v2 policy. This step is only required if you have enrollment restrictions blocking personal device enrollment.

First of all, lets create CSV file with device Manufacturer, Model & Serial number to upload it later in corporate device preparation :

CSV file must contain Manufacturer, Model & Serial number separated with coma (Check Microsoft Link for more details : https://learn.microsoft.com/en-ca/intune/device-enrollment/add-corporate-identifiers#add-windows-corporate-identifiers )

You only need to create text file like this one, then save it as CSV file :

Intune Admin Center → Devices → Enrollment → Corporate device identifiers → Add

Upload a CSV with columns : manufacturer, model, serial number
Devices matching the identifiers are marked as corporate-owned
This allows them to bypass personal device enrollment restrictions

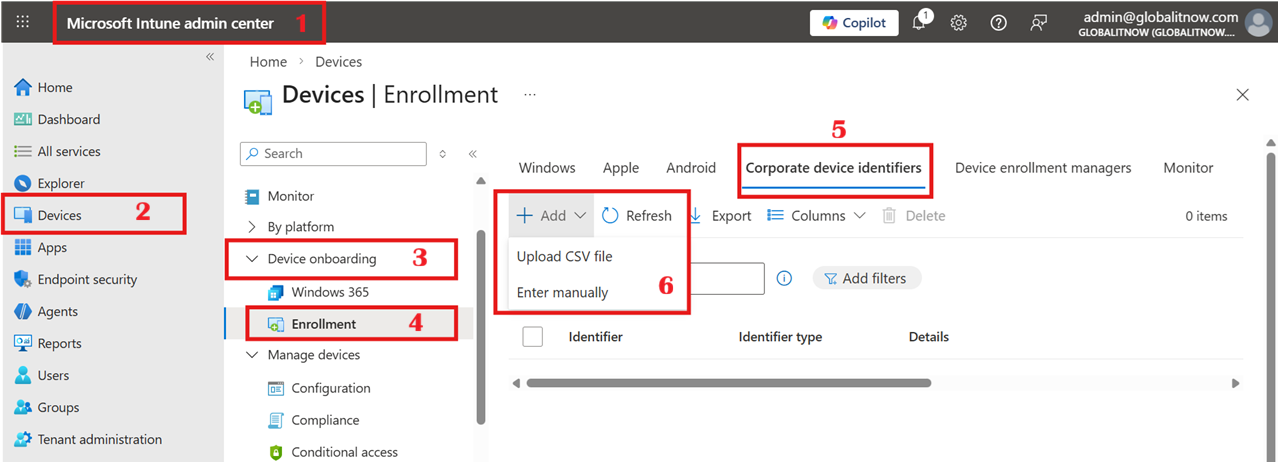

Go to Intune Admin Center -> Devices -> Enrollment -> Corporate Device Identifiers

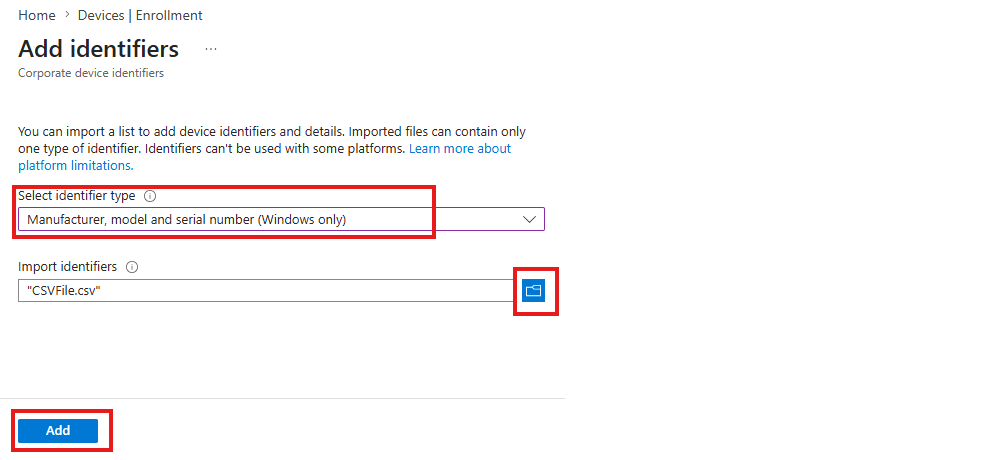

Click “+ Add” then select Upload CSV File (For Windows devices only you can’t Enter Serial Manualy, you should upload CSV file withe manufactor, model, serial)

let’s upload it to device identifiers :

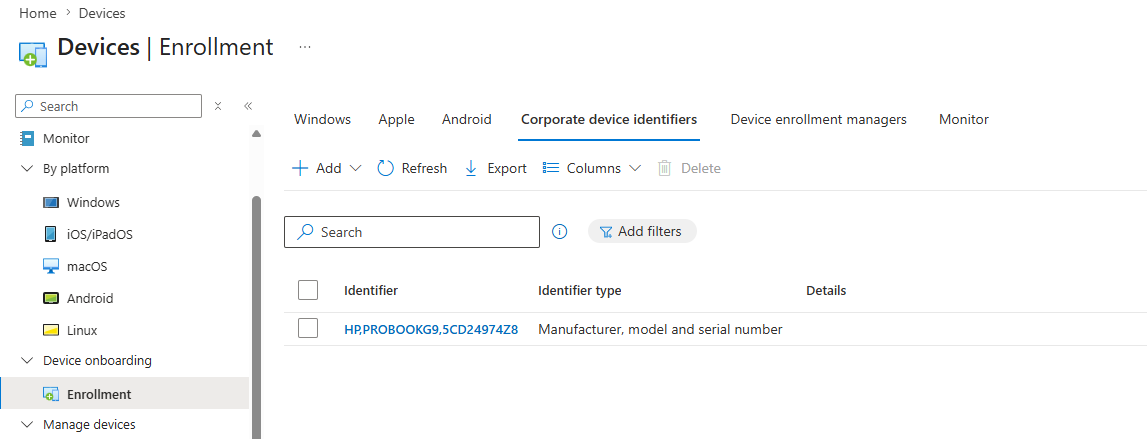

New device identifier added successfully.

Your Autopilot v2 environment is now configured. The next time a user powers on a new Windows 11 device (with the required OS version), connects to a network, and signs in with their corporate Entra ID credentials, the policy will activate automatically.

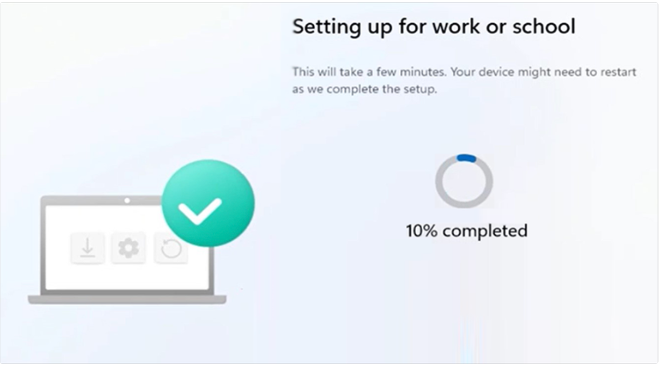

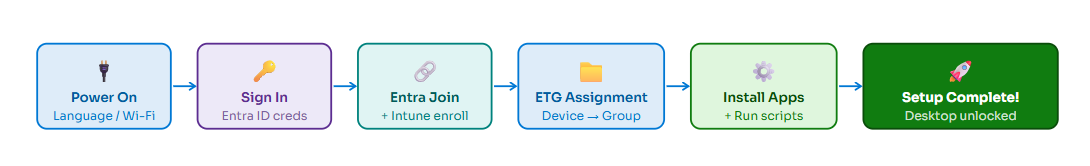

8 – The User Experience — What Happens During OOBE

Understanding the user-facing flow is critical for helpdesk readiness and for setting expectations with end users and managers.

Monitoring & Reporting

One of the most appreciated features of Autopilot v2 is the near real-time reporting. In v1, you were often flying blind a deployment would succeed or fail without much granularity. In v2, you get a full deployment report per device, including per-app and per-script status.

Accessing the Deployment Report

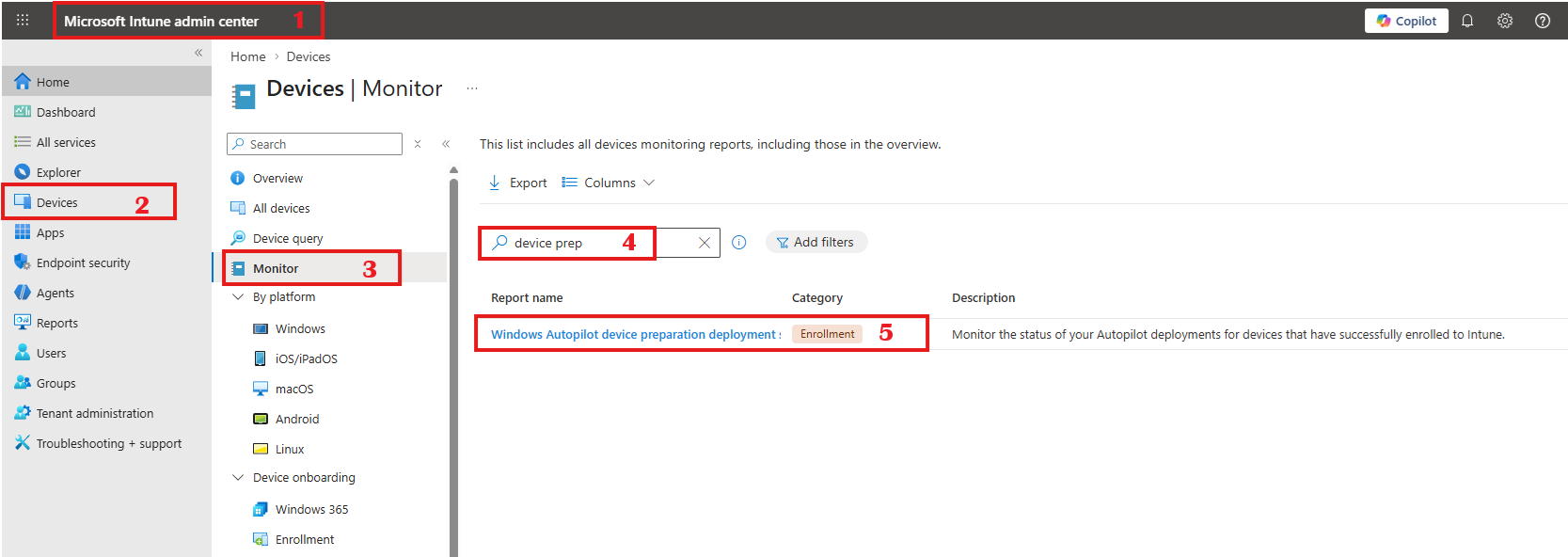

Intune Admin Center → Devices → Monitor → Windows Autopilot device preparation deployments

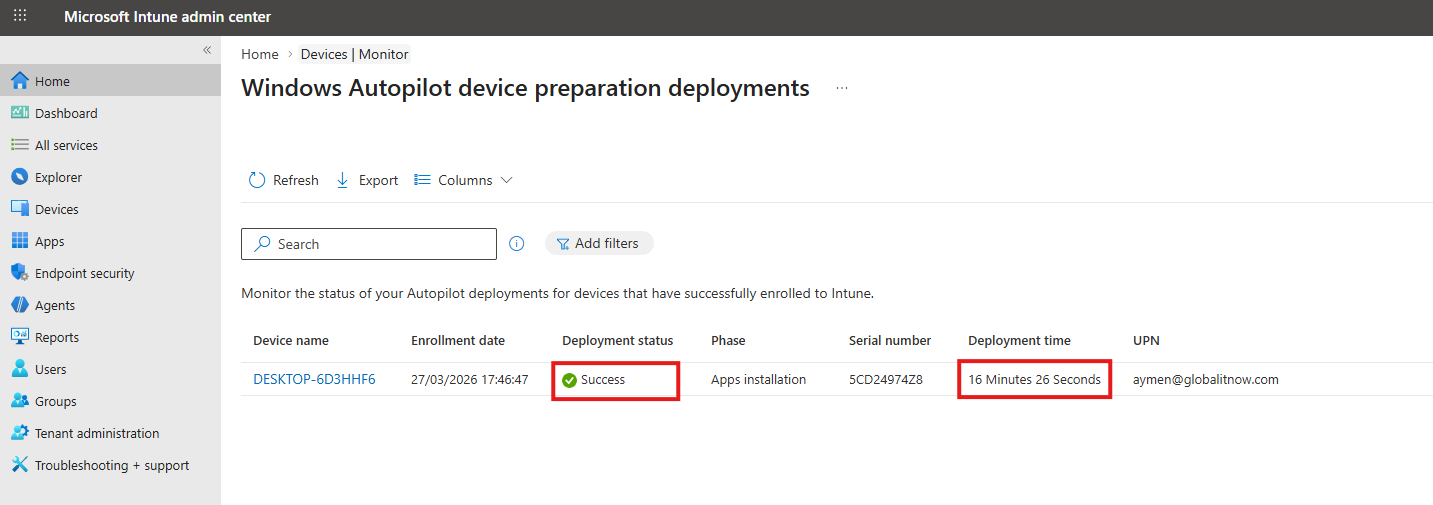

The report shows every device that went through Autopilot v2, with the following columns:

Column	Description
Device name	Click to drill into deployment details
Enrollment date	Date and time of enrollment
Deployment status	In progress / Success / Failed
Phase	Policy installation → Script installation → App installation
Deployment time	Total OOBE time in minutes (16 min in my case)
UPN	The user who triggered the deployment
Serial number	Hardware identifier

Best Practices

✅ Do

Use a static assigned security group for the device group (never dynamic)
Keep OOBE app count below 5 to minimize deployment time
Always test in a pilot user group before full rollout
Set the app install timeout to at least 60 minutes for large packages
Use Corporate Identifiers if you have personal device enrollment restrictions
Name your groups and policies with a clear convention
Monitor the deployment report after each wave
Enforce Standard User account type avoid giving local admin by default

❌ Don’t

Don’t try to deploy more than 10 apps/scripts in OOBE, it will fail
Don’t register devices as Autopilot v1 if you want v2 to apply
Don’t assign the policy to All Users scope it carefully
Don’t use Windows 10 devices they won’t receive the v2 policy
Don’t deploy heavy apps (>2GB) during OOBE if avoidable
Don’t skip testing the Win32 app detection rules skipped status is misleading
Don’t mix Autopilot v1 and v2 for the same user population without clear rules
Don’t ignore the “Skipped” status it often means an assignment is missing

Common Errors & How to Fix Them

Symptom	Root Cause	Fix
Policy never applies device goes through standard OOBE	User not in the group the policy is assigned to, OR MDM user scope doesn’t include the user	Verify user group membership and MDM scope in Entra ID
Device registered as Autopilot v1 v2 policy ignored	Autopilot v1 profile takes precedence when a device hash is registered	Deregister the device from Autopilot v1 in Intune before re-provisioning
App shows “Skipped” in deployment report	App selected in policy is not assigned (Required) to the device security group	Go to the app’s assignment and add the device group as Required
Win32 app fails with “managed installer” error	Known issue: Win32/Store/Enterprise apps skipped when a managed installer policy is enabled	Disable the managed installer policy or check for the Microsoft workaround in the known issues docs
Deployment times out mid-OOBE	App install timeout too low for a large application package	Increase the “Allowed minutes for app install” setting in the policy
Device group not populating ETG not working	Device group is dynamic instead of static assigned	Recreate the group as a static Assigned security group
OOBE fails on Windows 10 device	Autopilot v2 requires Windows 11 22H2+ Windows 10 is unsupported	Use Autopilot v1 for Windows 10 or upgrade the device OS
Hybrid AD join fails	Autopilot v2 only supports Entra ID join Hybrid is not supported	Use Autopilot v1 for Hybrid AD join scenarios

Diagnostic Checklist Before Going Live : Run through this list before your first production deployment: (1) Windows 11 22H2+ with KB5035942 confirmed on test device, (2) Automatic MDM enrollment enabled for all target users, (3) Device group is static assigned, (4) Apps assigned as Required to device group, (5) Policy assigned to user group, (6) Device NOT registered as Autopilot v1, (7) Tested with a pilot user in the target group.
