Microsoft Graph Deep Dive Series — Part 1 — Connection

Microsoft Graph is a unified API endpoint that provides access to data and intelligence in Microsoft 365. It serves as the gateway to data across Microsoft
Cloud services, including Exchange Online, SharePoint, Teams, Entra ID, Enterprise Mobility + Security, etc.
This comprehensive guide will walk you through the essential operations you can perform with Microsoft Graph using PowerShell.

What is Microsoft Graph?

Microsoft Graph is a RESTful web API that enables you to access Microsoft Cloud service resources. It provides a unified programmability model to access data from :

• Microsoft 365 services : Exchange Online, OneDrive, SharePoint, Microsoft Teams
• Enterprise Mobility and Security services: Entra ID, Intune
• Windows services: Activities, Devices
• Dynamics 365 Business Central

The API uses a single endpoint : https://graph.microsoft.com

Prerequisites

Before working with Microsoft Graph PowerShell, ensure you have:
1. PowerShell 5.1 or PowerShell 7+
2. Microsoft Graph PowerShell SDK
3. Appropriate permissions in your Microsoft 365 tenant
4. Azure AD App Registration (for production scenarios)

Installing Microsoft Graph PowerShell Module

First, install the Microsoft Graph PowerShell SDK :

# Install the main Microsoft Graph module
Install-Module Microsoft.Graph -Scope CurrentUser -Force

# Install specific sub-modules if needed
Install-Module Microsoft.Graph.Users -Scope CurrentUser -Force
Install-Module Microsoft.Graph.Groups -Scope CurrentUser -Force
Install-Module Microsoft.Graph.Mail -Scope CurrentUser -Force
Install-Module Microsoft.Graph.Files -Scope CurrentUser -Force

# Verify if Graph module is installed
Get-Module Microsoft.Graph -ListAvailable

Bonus

This piece of code checks :

• If the Graph module is not installed, it will install it.
• If the Graph module exists, it will be updated.
• Finally import the module.

# Install Exchange Online Module if not installed, else update it
IF (-not (Get-Module -Name ExchangeOnlineManagement -ListAvailable))
{
    Install-Module ExchangeOnlineManagement -Force
    Write-Host "BEGIN - Install Module
    ExchangeOnlineManagement ............................ OK " -ForegroundColor Green
}
else
{
    # Update existing Module to last version
    Update-Module ExchangeOnlineManagement -Force
    Get-Module ExchangeOnlineManagement
}
# Import ExchangeOnlineManagement module
Import-Module ExchangeOnlineManagement

Authentication Methods

Interactive Authentication

The simplest method for testing and development :

# Connect with interactive login
Connect-MgGraph -Scopes "User.ReadWrite", "Mail.ReadWrite","Files.ReadWrite"

# Check connection status
Get-MgContext

# View current permissions
(Get-MgContext).Scopes

App-Based Authentication

For production scenarios and automation, use app-based authentication (the best approach) :

# Using Client Credentials (App-only)
$ClientId = "your-Entra-App-client-id"
$TenantId = "your-tenant-id"
$ClientSecret = "your-client-secret"

$Body = @{
    Grant_Type = "client_credentials"
    Scope = "https://graph.microsoft.com/.default"
    Client_Id = $ClientId
    Client_Secret = $ClientSecret
}

# Connect To MS Graph API
$Connection = Invoke-RestMethod -Uri "https://login.microsoftonline.com/$TenantId/oauth2/v2.0/token" -Method POST -Body $Body
$Token = $Connection.access_token

# Convert token to SecureString
$SecureToken = ConvertTo-SecureString -String $AccessToken -AsPlainText -Force

# Use the token for authentication
Connect-MgGraph -AccessToken $SecureToken

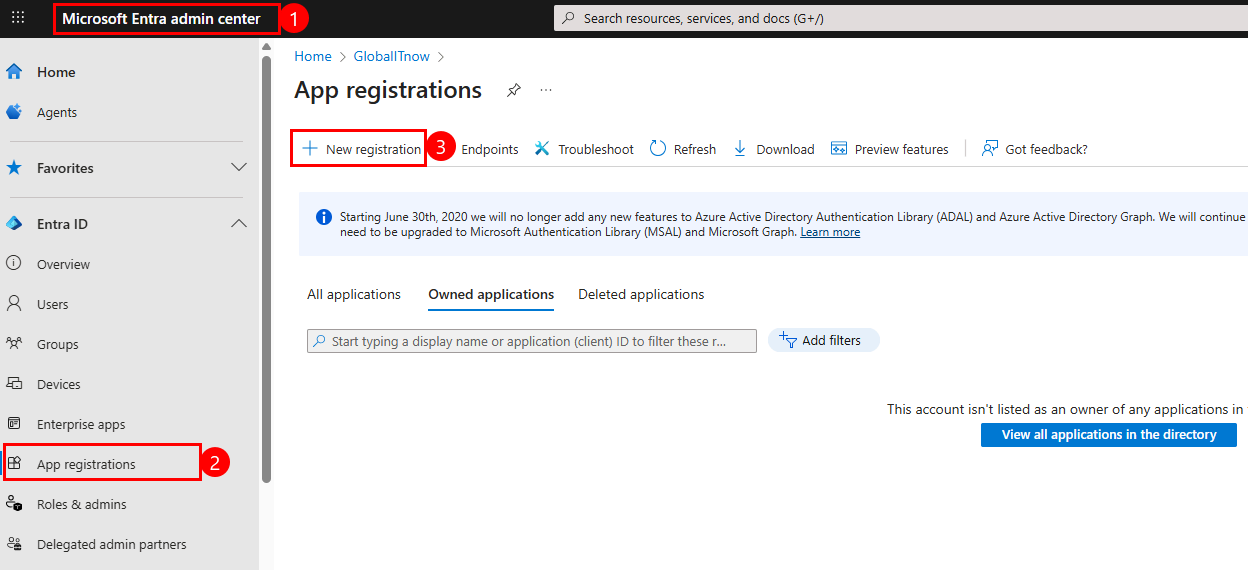

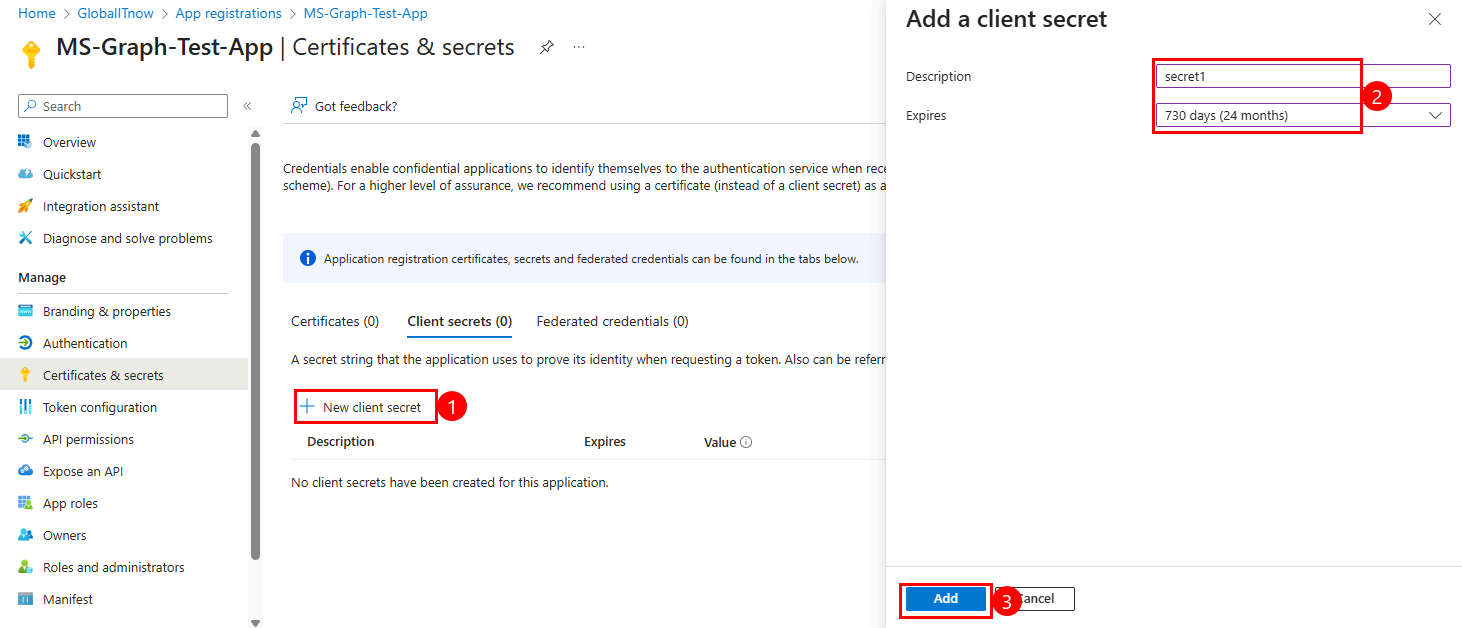

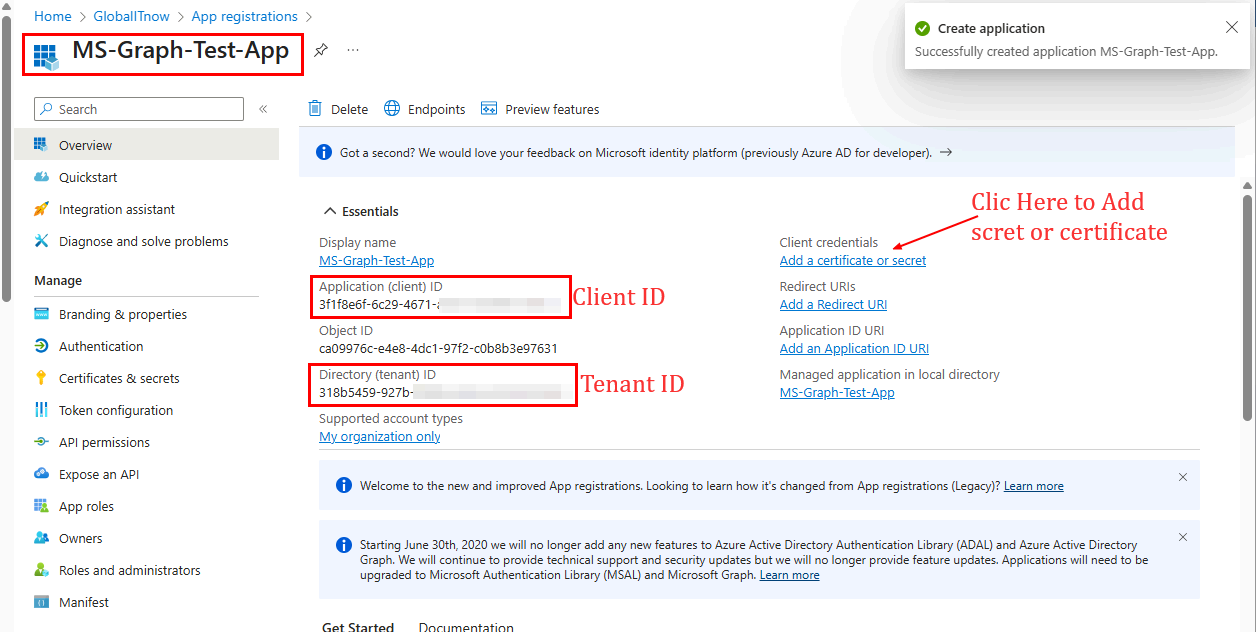

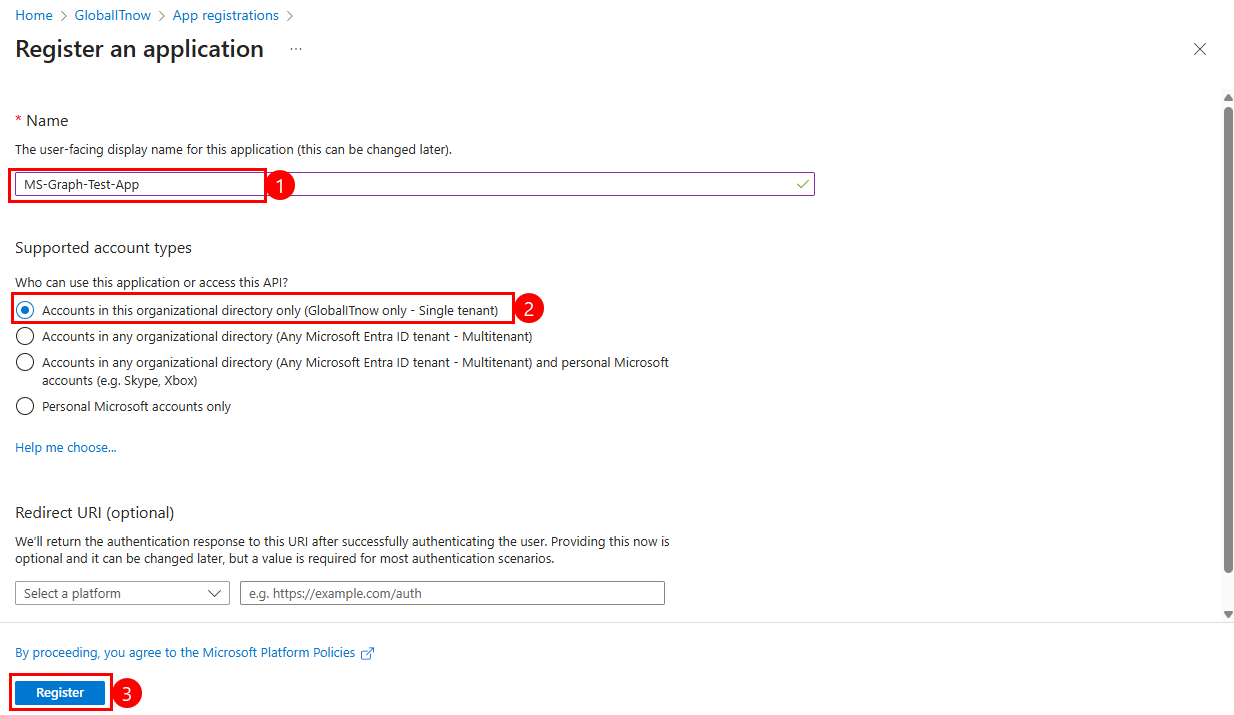

Follow these steps if you dont know how to create Entra ID App :

Certificate-Based Authentication

More secure option using certificates :

# Connect using certificate thumbprint
Connect-MgGraph -ClientId "your-app-id" -TenantId "yourtenant-id" -CertificateThumbprint "your-cert-thumbprint"

Check this documentation to create your own certificate and upload it to your Entra ID application :

Create PFX/Cer Self Signed Certificates using PowerShell – CloudSecOp.com : Real-World Tech Insights
