Microsoft Graph Deep Dive Series — Part 7 — Exchange Online

Introduction

This quick reference guide is designed for Exchange Online administrators who are new to Microsoft Graph PowerShell. Each section contains simple, practical commands that you can use immediately to manage mailboxes, emails, calendars, and contacts.

I think this part of Exchange Online is the most important part of the entire series because it affects almost every aspect of daily tasks, and for that reason, I will detail all the steps in this article.

Prerequisites and Setup

  • MS Graph Required Module installed
  • App Registration in Entra Id with required permissions

Create Registred Entra Id App

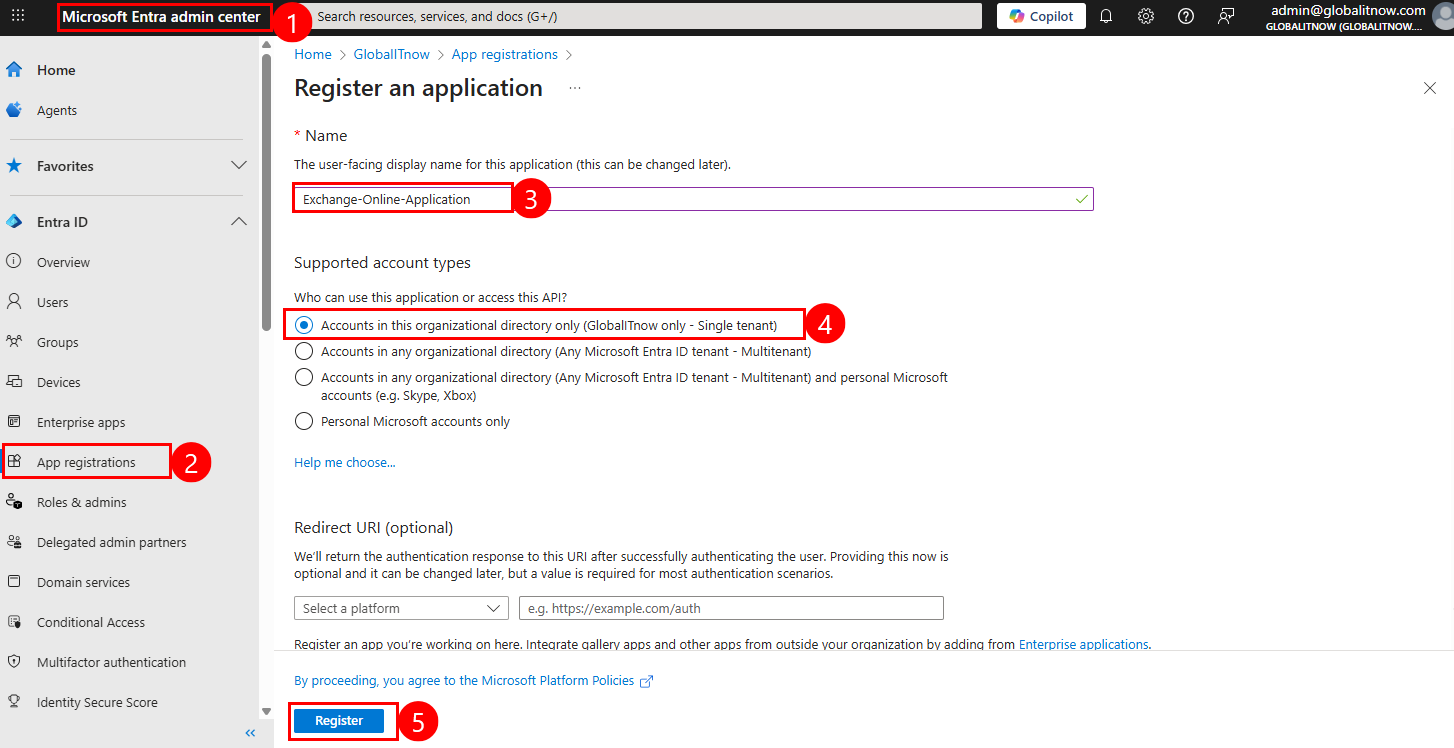

  • Connect to entra ID : https://entra.microsoft.com/
  • Select “App Registration” -> “New Registration“
  • Give a name to your new App
  • Select “Accounts in this organizational directory only (GlobalITnow only – Single tenant)“
  • Click “Register“

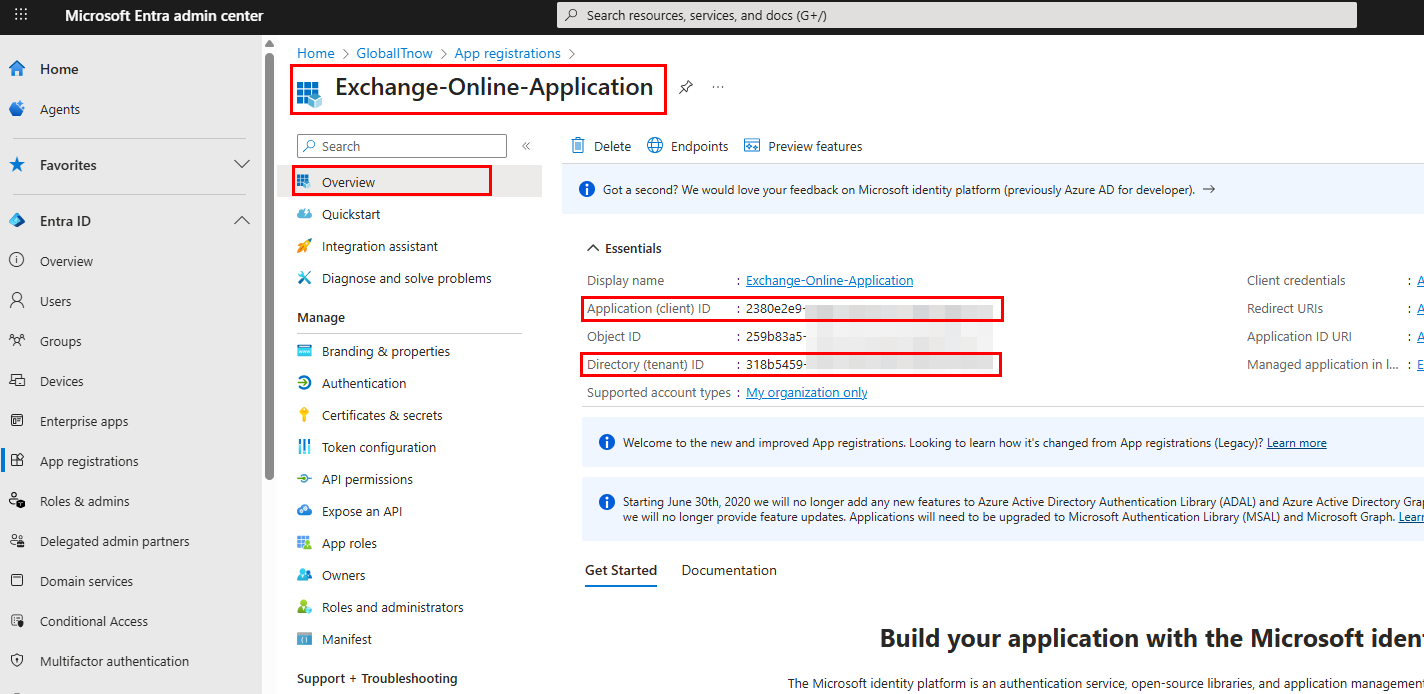

Copy Client ID and Tenant ID in notepad, we’ll use them in connection script later.

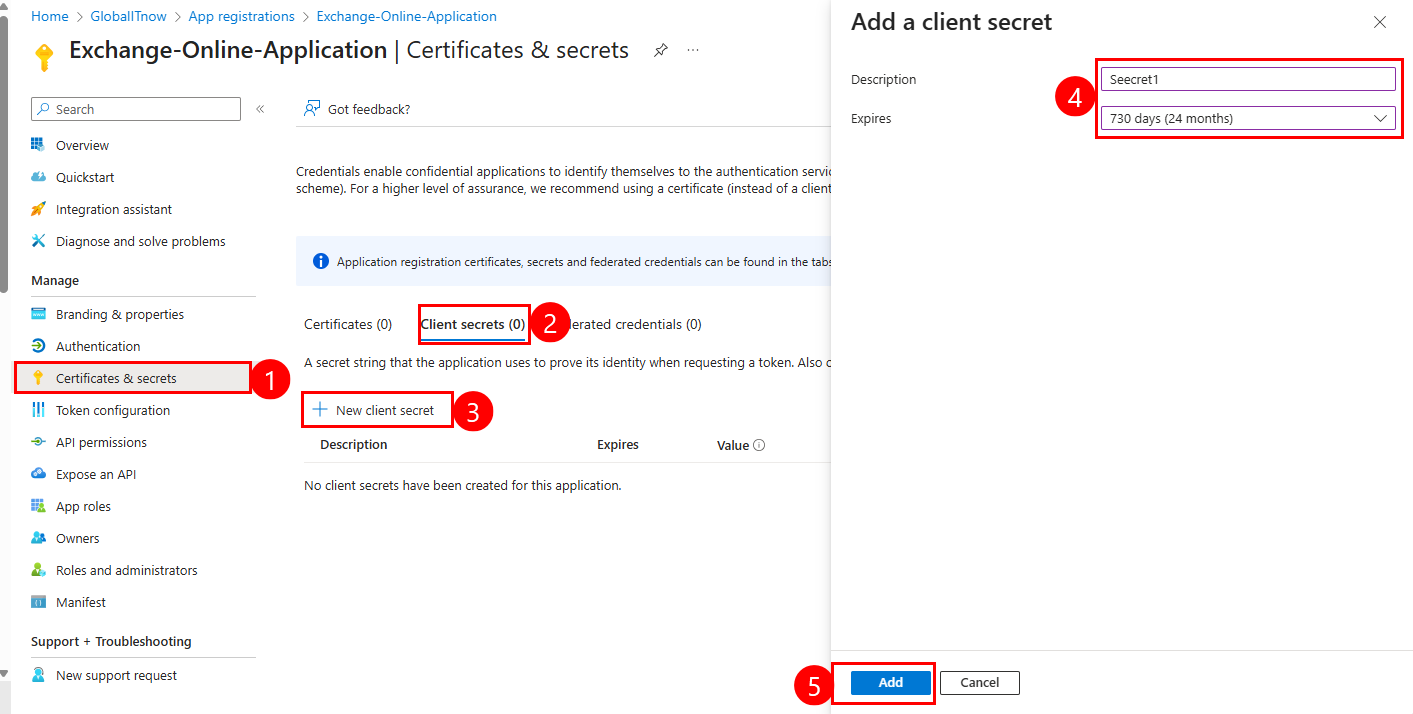

  • Go to Certificates & Secrets -> Client Secrets -> New Client Secret
  • Give new name to your secret and select expiration period
  • Click “Add“

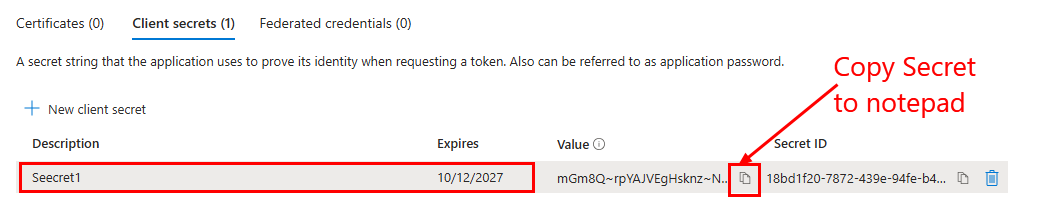

Copy generated secret in notepad with previous copied Client ID and Tenant ID.

  • Now, we need to assign permissions to our Registred Entra ID App

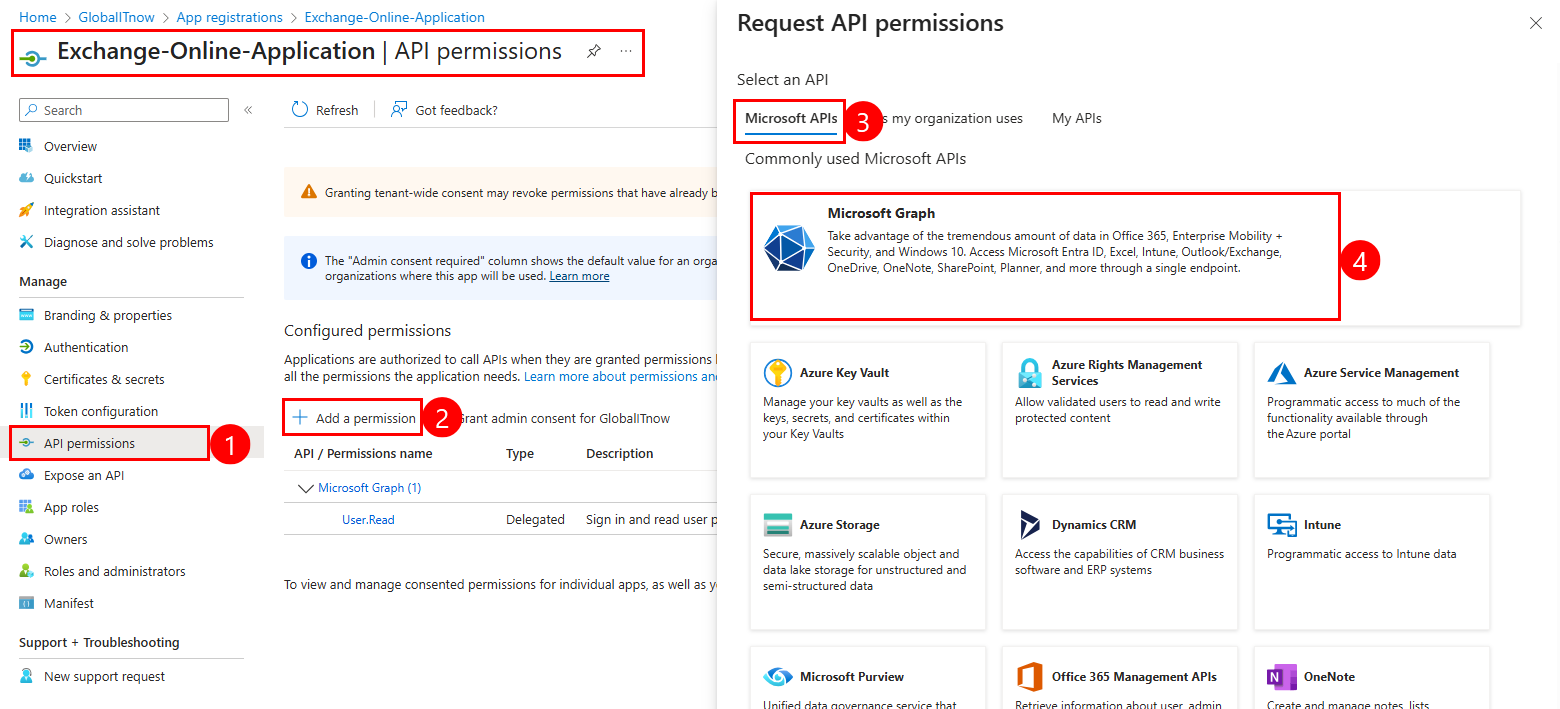

  • Go to “API Permissions” -> “+ Add a permission“
  • Select Microsoft API -> Microsoft Graph

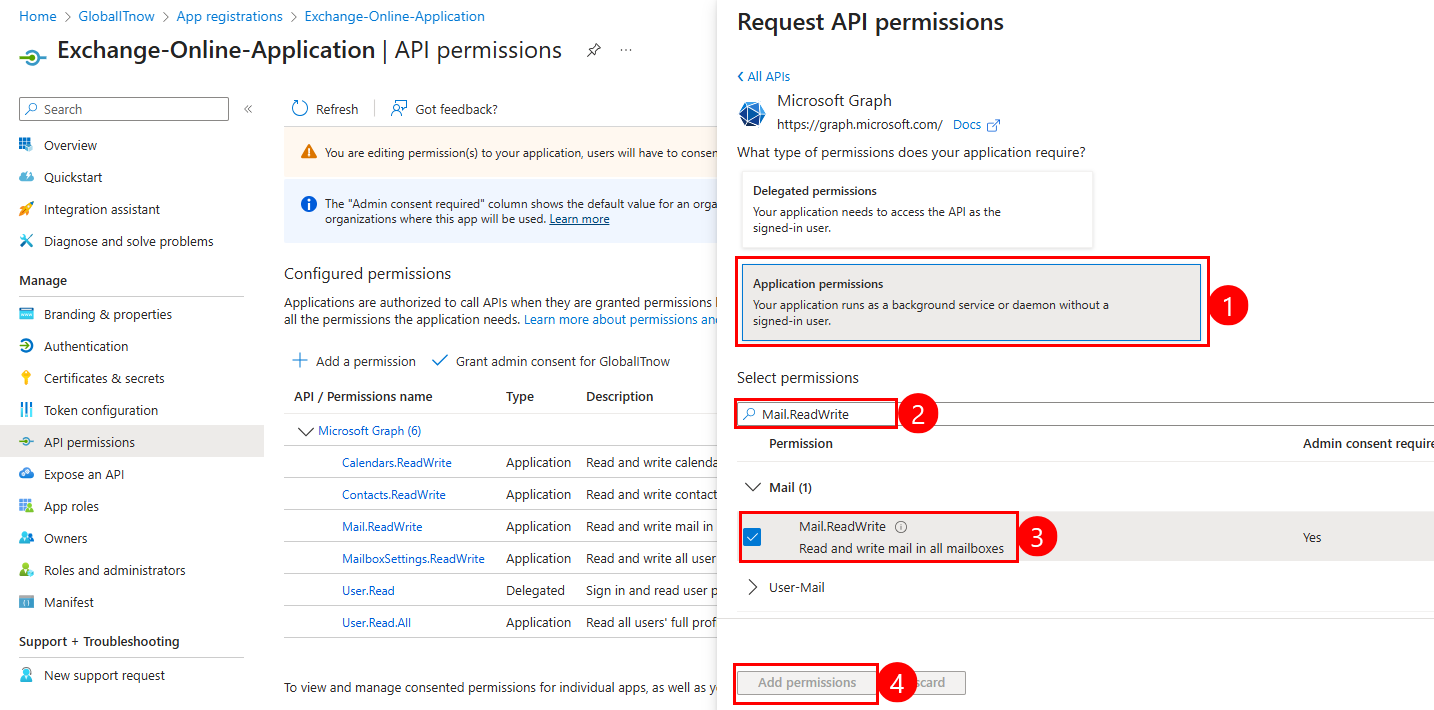

Select “Application Permissions” then Add these permissions one by one :

  • Mail.ReadWrite, Calendars.ReadWrite, Contacts.ReadWrite, MailboxSettings.ReadWrite, User.Read.All, Mail.Send

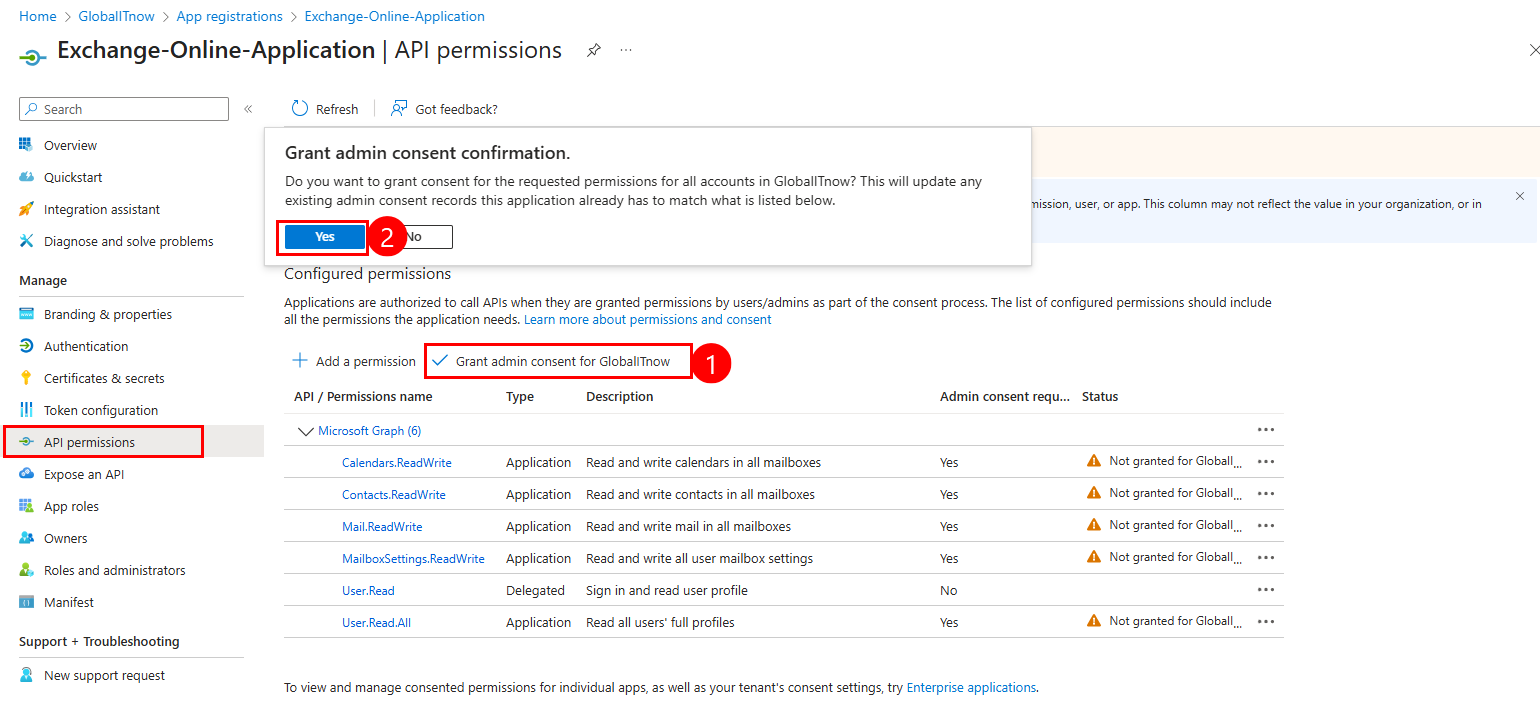

  • Select “Grant Admin consent” then click “Yes“.

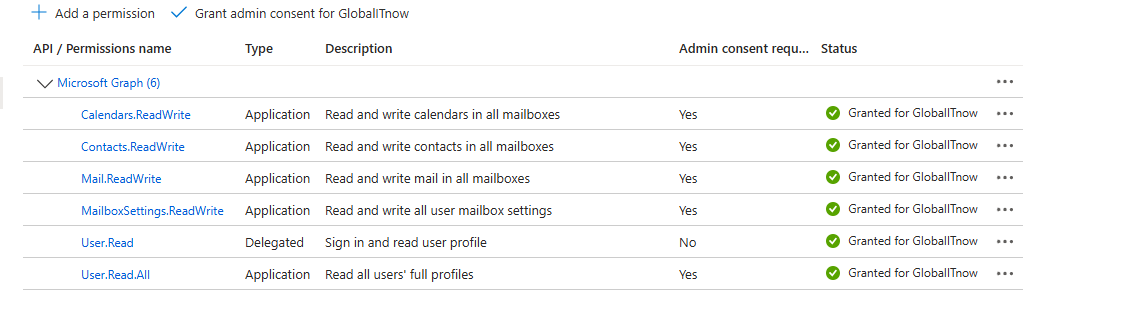

  • You”ll see all permission turned to green as the following printscreen

Now you’re done with Entra ID Application Registration, let’s see how to connect to it and how to execute all command lines.

Install Required Module

Install-Module Microsoft.Graph -Scope CurrentUser -Force
Import-Module Microsoft.Graph

Authentication with App Registration

This connection is to connect to our Entra ID application (Exchange-Online-Application in my case).

You just need to change the 3 first variables then execute :

# -------------------------------------------------- Change this variables -----------------------------------------
# Connect using app credentials
$TenantId = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
$ClientId = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"
$ClientSecret = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"

# -------------------------------------------------- Noting to change here -----------------------------------------
$Scope = "https://graph.microsoft.com/.default"
$AuthUrl =
"https://login.microsoftonline.com/$TenantId/oauth2/v2.0/token"
$Body = @{
    client_id = $ClientId
    scope = $Scope
    client_secret = $ClientSecret
    grant_type = "client_credentials"
}
$Connection = Invoke-RestMethod -Method POST -Uri $AuthUrl -Body $Body -ContentType "application/x-www-form-urlencoded"
$AccessToken = $Connection.access_token

# Convert token to SecureString
$SecureToken = ConvertTo-SecureString -String $AccessToken -AsPlainText -Force

# Use the token for authentication
Connect-MgGraph -AccessToken $SecureToken

Mailbox Management

List All Mailboxes (Users)

Permissions: User.Read.All

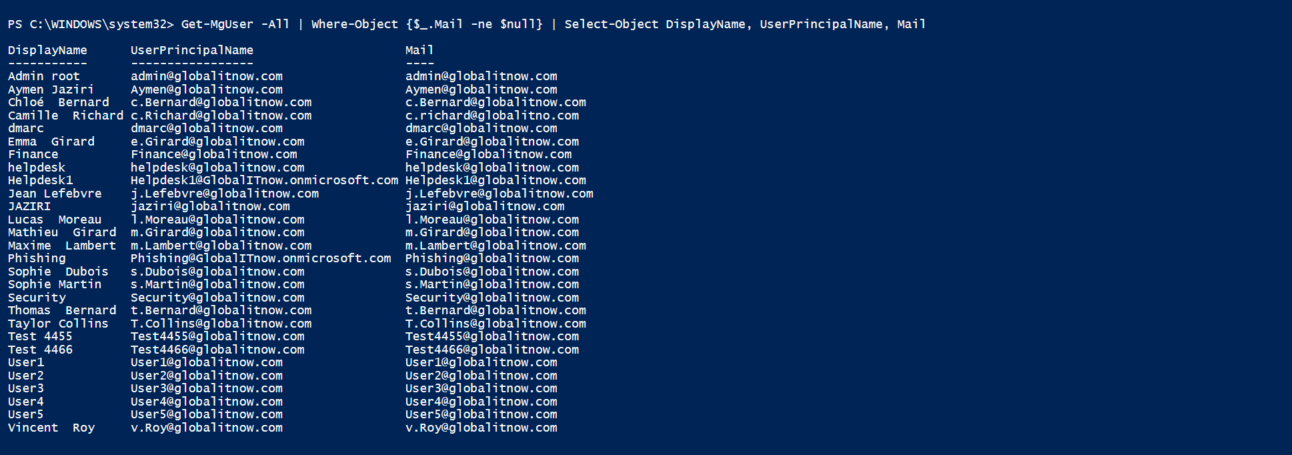

Let’s list all exchange Online Mailboxes :

# Get all users with mailboxes
Get-MgUser -All | Where-Object {$_.Mail -ne $null} | Select-Object DisplayName, UserPrincipalName, Mail

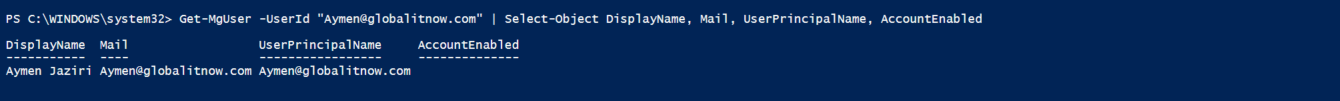

Get Specific User Mailbox Info

Permissions: User.Read.All

Let’s get Specific User Mailbox Info :

# Get mailbox details for a user
Get-MgUser -UserId "user@tenant.com" | Select-Object DisplayName, Mail, UserPrincipalName, AccountEnabled

Check Mailbox Settings

Permissions: MailboxSettings.Read

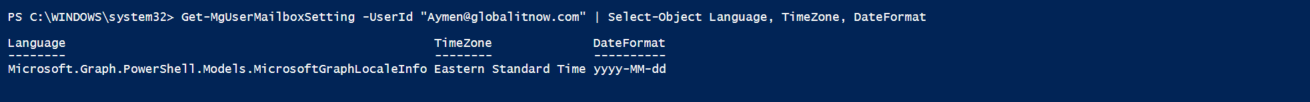

Let’s get Specific User Mailbox settings

# View user's mailbox settings
Get-MgUserMailboxSetting -UserId "user@tenant.com" | Select-Object Language, TimeZone, DateFormat

Update Mailbox Settings

Permissions: MailboxSettings.ReadWrite

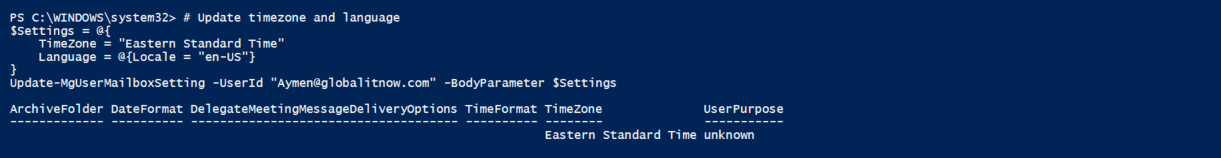

Let’s update Specific User Mailbox settings

# Update timezone and language
$Settings = @{
    TimeZone = "Eastern Standard Time"
    Language = @{Locale = "en-US"}
}
Update-MgUserMailboxSetting -UserId "user@tenant.com" -BodyParameter $Settings

Email Management

List Emails in Inbox

Permissions: Mail.Read or Mail.ReadWrite

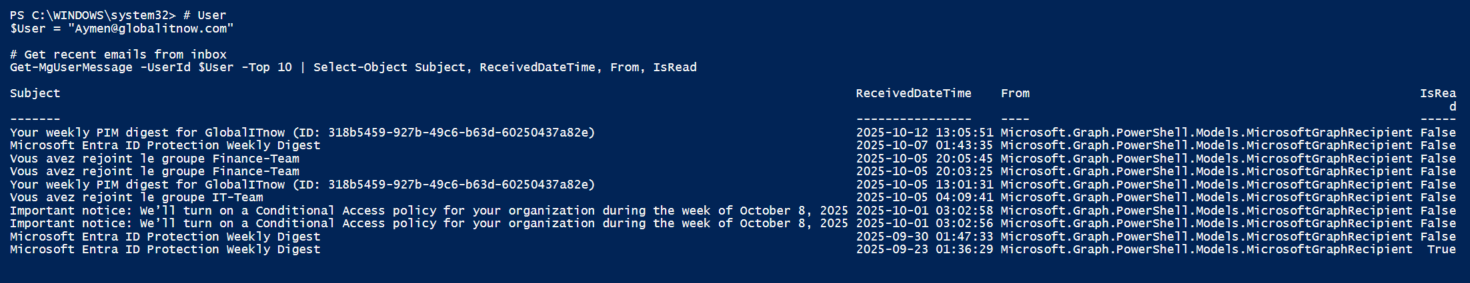

Let’s get top 10 emails in specific user mailbox :

# User
$User = "Aymen@globalitnow.com"

# Get recent emails from inbox
Get-MgUserMessage -UserId $User -Top 10 | Select-Object Subject, ReceivedDateTime, From, IsRead

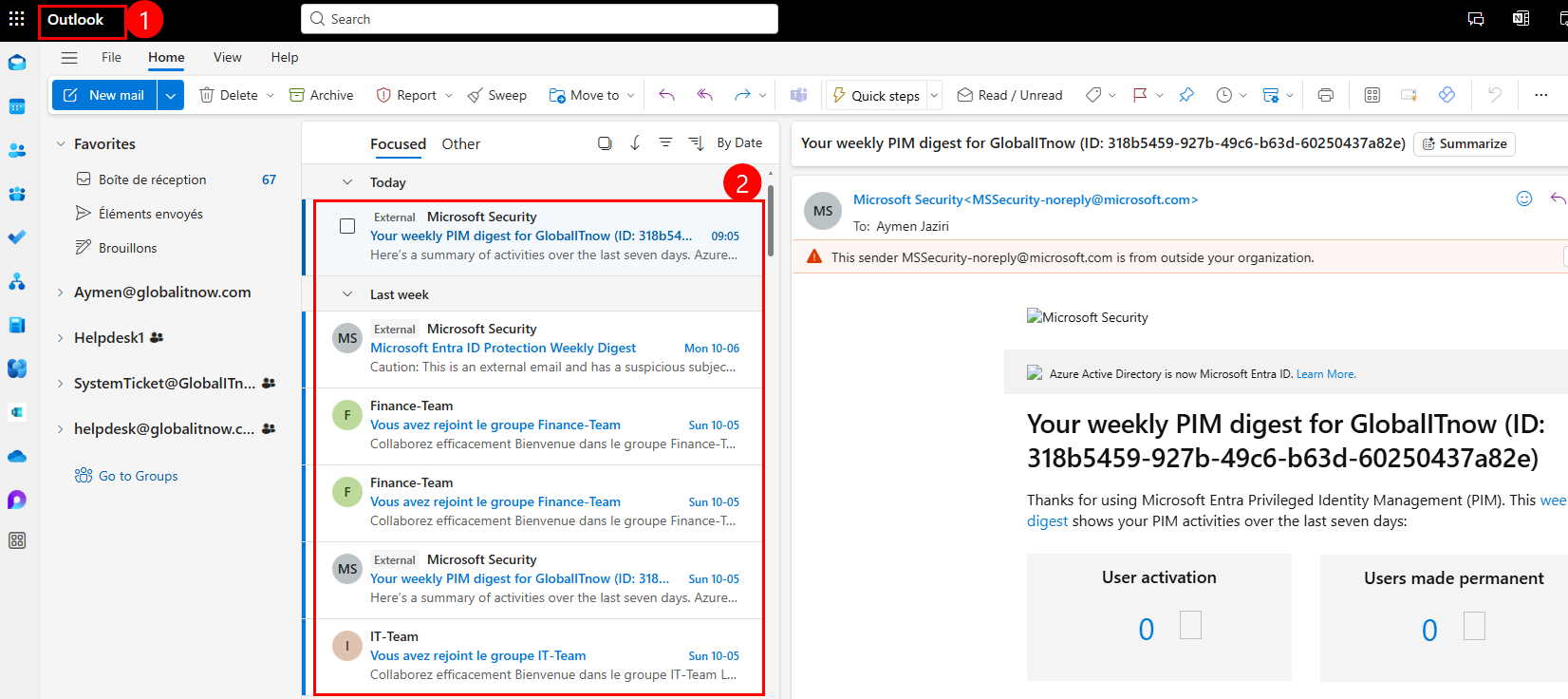

You can see here the same email list :

Search Emails by Subject

Permissions: Mail.Read

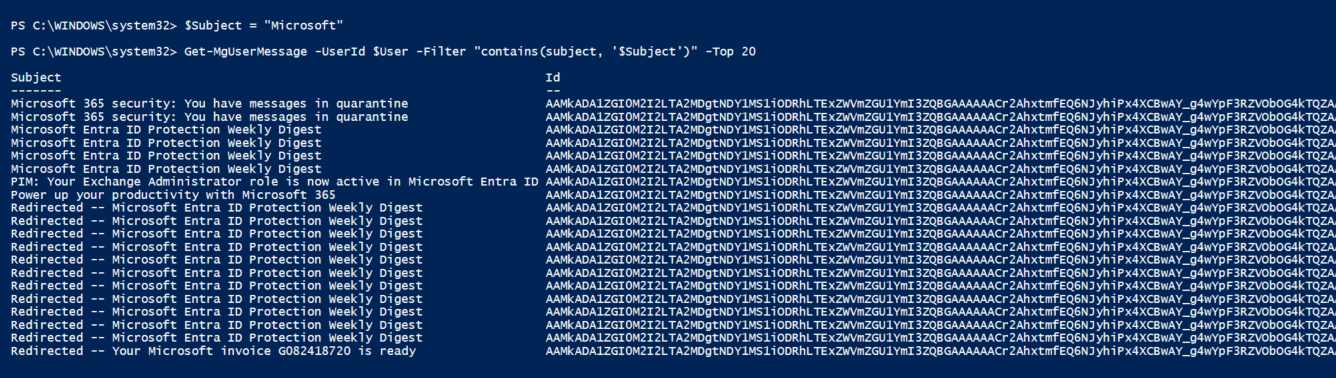

Let’s get top 20 emails where subject contain “Microsoft“

# User
$User = "Aymen@globalitnow.com"

# Subject
$Subject = "Microsoft"

# Search emails containing specific text in subject
Get-MgUserMessage -UserId $User -Filter "contains(subject, '$Subject')" -Top 20

Search All Emails by Sender

Permissions: Mail.Read

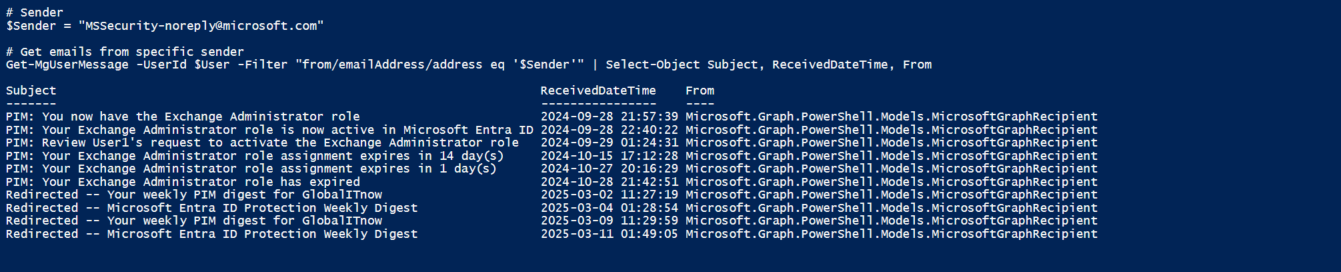

Let’s get list of email received from “MSSecurity-noreply@microsoft.com“

# User mailbox
$User = "Aymen@globalitnow.com"

# Sender
$Sender = "MSSecurity-noreply@microsoft.com"

# Get emails from specific sender
Get-MgUserMessage -UserId $User -Filter "from/emailAddress/address eq '$Sender'" | Select-Object Subject, ReceivedDateTime, From

Get emails from specific sender for last 5 days

Permissions: Mail.Read

Let’s get received emails from specific sender that was received yesterday

# User mailbox
$User = "Aymen@globalitnow.com"

# Sender
$Sender = "aymeneljaziri@gmail.com"

# Get emails from specific sender for last 5 days
$Date = (Get-Date).AddDays(-5)
Get-MgUserMessage -UserId $User -Filter "from/emailAddress/address eq '$Sender'" | Where-Object ReceivedDateTime -GE $Date | Select-Object Subject, ReceivedDateTime, From

Send simple Text Email

Permissions: Mail.Send

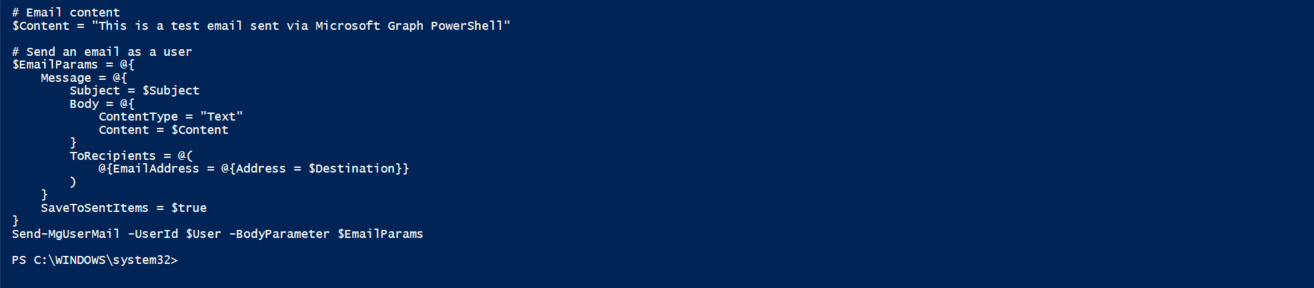

Let’s send TEST email from “Aymen@globalitnow.com” to my gmail email address :

# User mailbox
$User = "Aymen@globalitnow.com"

# Destination email address
$Destination = "aymeneljaziri@gmail.com"

# Email Subject
$Subject = "Test Email from PowerShell"

# Email content
$Content = "This is a test email sent via Microsoft Graph PowerShell"

# Send an email as a user
$EmailParams = @{
    Message = @{
        Subject = $Subject
        Body = @{
            ContentType = "Text"
            Content = $Content
        }
        ToRecipients = @(@{EmailAddress = @{Address = $Destination}})
    }
    SaveToSentItems = $true
}
Send-MgUserMail -UserId $User -BodyParameter $EmailParams

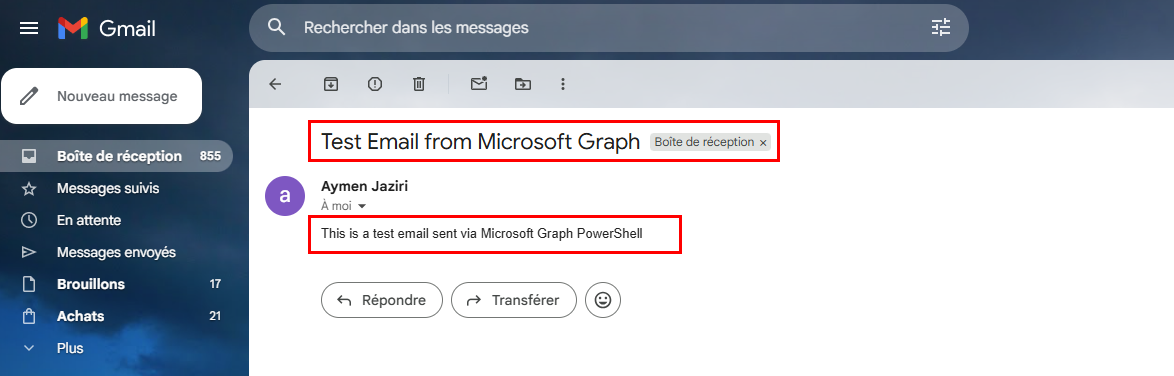

Here is the received email message :

Send HTML Email

Permissions: Mail.Send

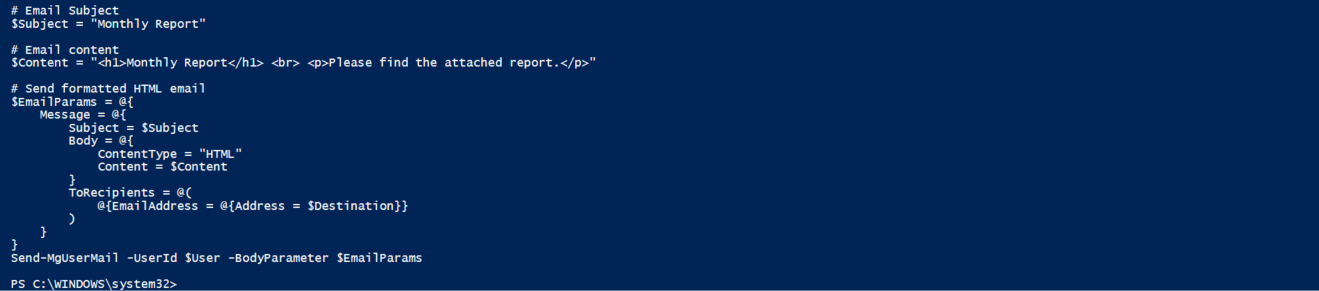

Let’s send email formated in HTML

# User mailbox
$User = "Aymen@globalitnow.com"

# Destination email address
$Destination = "aymeneljaziri@gmail.com"

# Email Subject
$Subject = "Monthly Report"

# Email content
$Content = "<h1>Monthly Report</h1> <br> <p>Please find the attached report.</p>"

# Send formatted HTML email
$EmailParams = @{
    Message = @{
        Subject = $Subject
        Body = @{
            ContentType = "HTML"
            Content = $Content
        }
        ToRecipients = @(@{EmailAddress = @{Address = $Destination}})
    }
}
Send-MgUserMail -UserId $User -BodyParameter $EmailParams

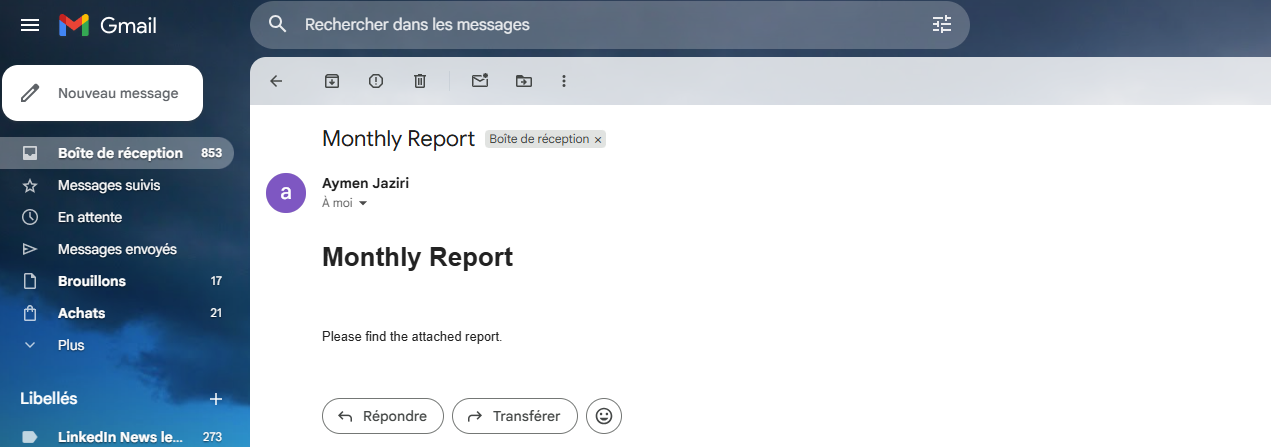

Here is the received email message :

Send Email with CC and BCC

Permissions: Mail.Send

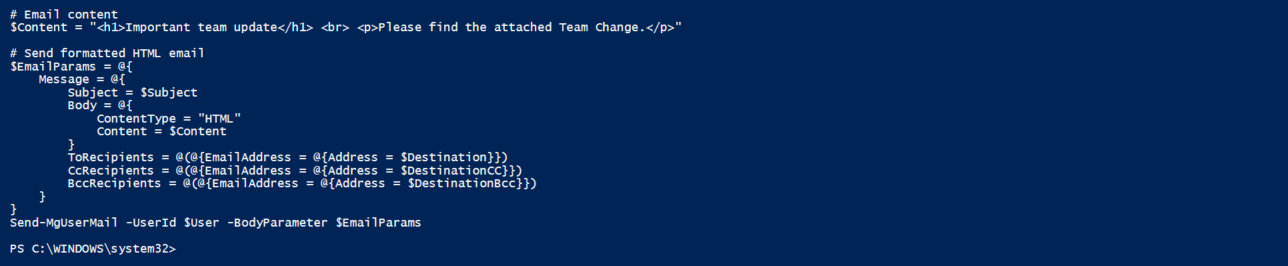

Let’s send email with CC and BCC

# User mailbox
$User = "Aymen@globalitnow.com"

# Destination email addresses
$Destination = "aymeneljaziri@gmail.com"
$DestinationCC = "e.Girard@globalitnow.com"
$DestinationBcc = "a.Dubois@globalitnow.com"

# Email Subject
$Subject = "Team Update"

# Email content
$Content = "<h1>Important team update</h1> <br> <p>Please find the attached Team Change.</p>"

# Send formatted HTML email
$EmailParams = @{
    Message = @{
        Subject = $Subject
        Body = @{
            ContentType = "HTML"
            Content = $Content
        }
        ToRecipients = @(@{EmailAddress = @{Address = $Destination}})
        CcRecipients = @(@{EmailAddress = @{Address = $DestinationCC}})
        BccRecipients = @(@{EmailAddress = @{Address = $DestinationBcc}})
    }
}
Send-MgUserMail -UserId $User -BodyParameter $EmailParams

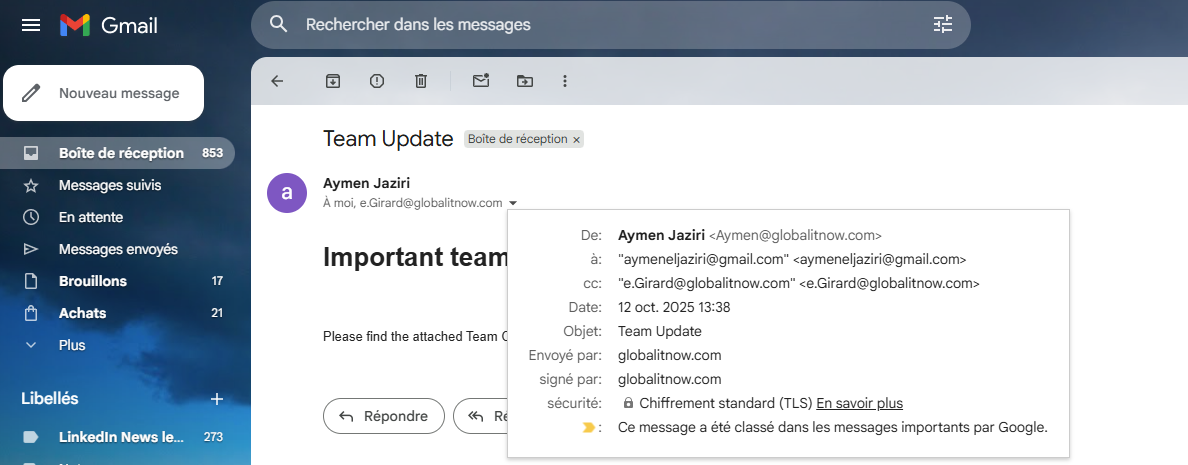

Here is the received email message :

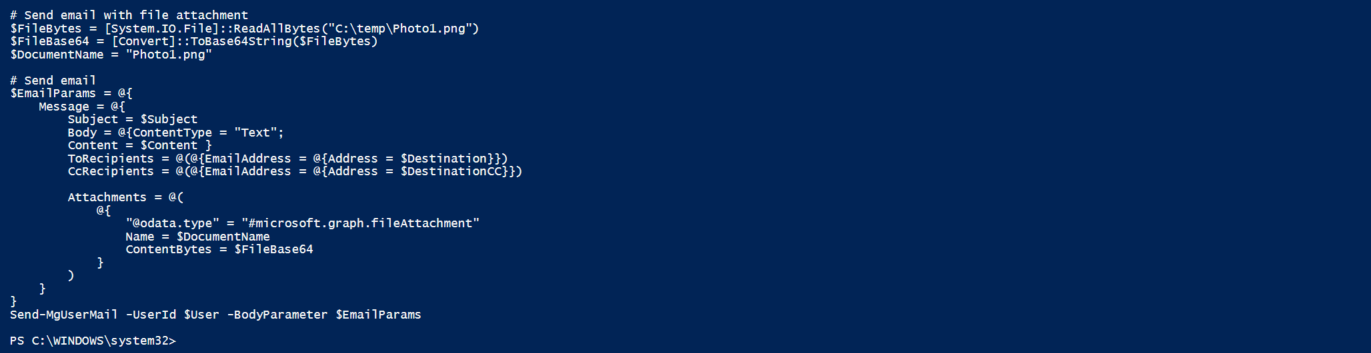

Send Email with Attachment

Permissions: Mail.Send

Let’s send email with attached file (“C:\temp\Photo1.png”)

# User mailbox
$User = "Aymen@globalitnow.com"

# Destination email addresses
$Destination = "aymeneljaziri@gmail.com"
$DestinationCC = "e.Girard@globalitnow.com"

# Email Subject
$Subject = "Document Attached"

# Email content
$Content = "Please review the attached document"

# Send email with file attachment
$FileBytes = [System.IO.File]::ReadAllBytes("C:\temp\Photo1.png")
$FileBase64 = [Convert]::ToBase64String($FileBytes)
$DocumentName = "Photo1.png"

# Send email
$EmailParams = @{
    Message = @{
        Subject = $Subject
        Body = @{ContentType = "Text";
        Content = $Content }
        ToRecipients = @(@{EmailAddress = @{Address = $Destination}})
        CcRecipients = @(@{EmailAddress = @{Address = $DestinationCC}})

        Attachments = @(
            @{
                "@odata.type" = "#microsoft.graph.fileAttachment"
                Name = $DocumentName
                ContentBytes = $FileBase64
            }
        )
    }
}
Send-MgUserMail -UserId $User -BodyParameter $EmailParams

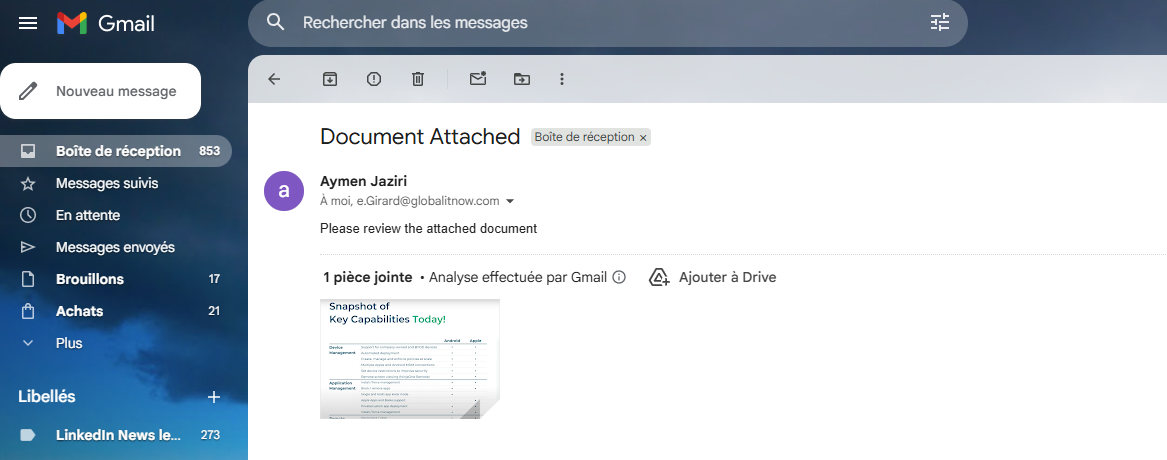

Here is the received email message :

Delete Email

Permissions: Mail.ReadWrite

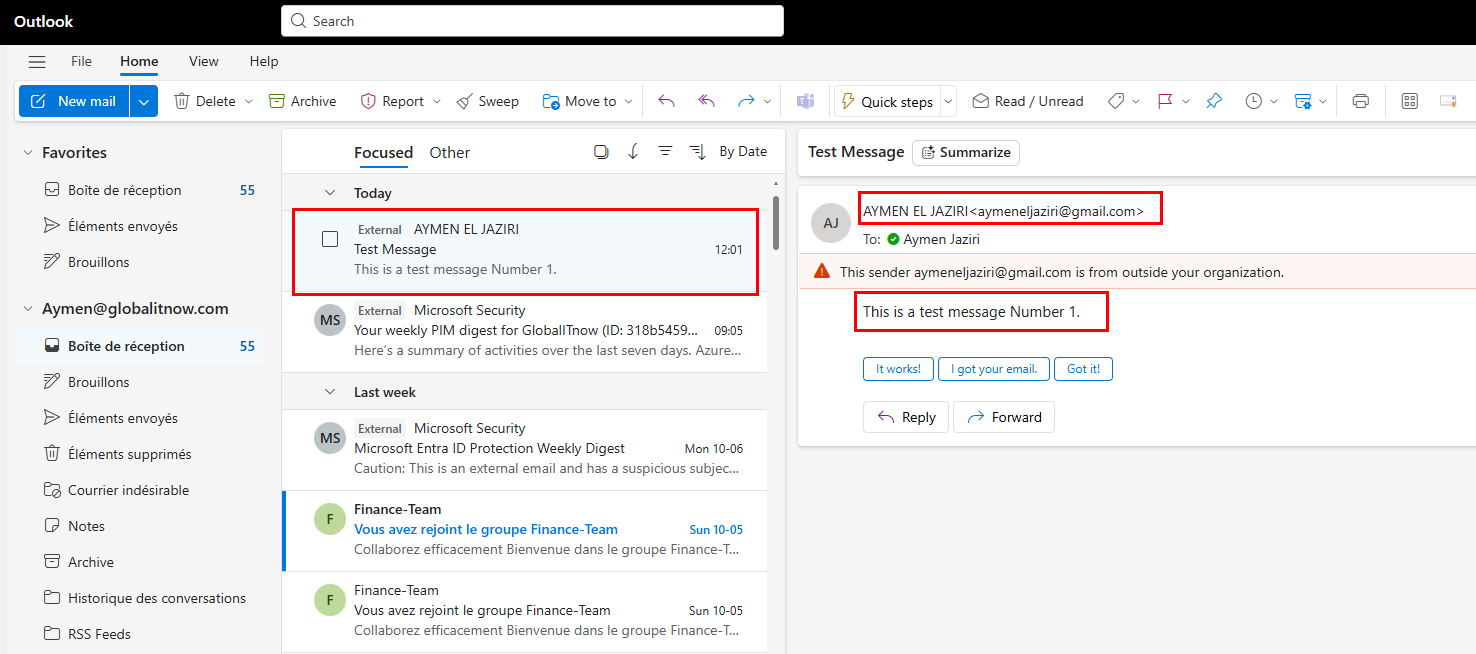

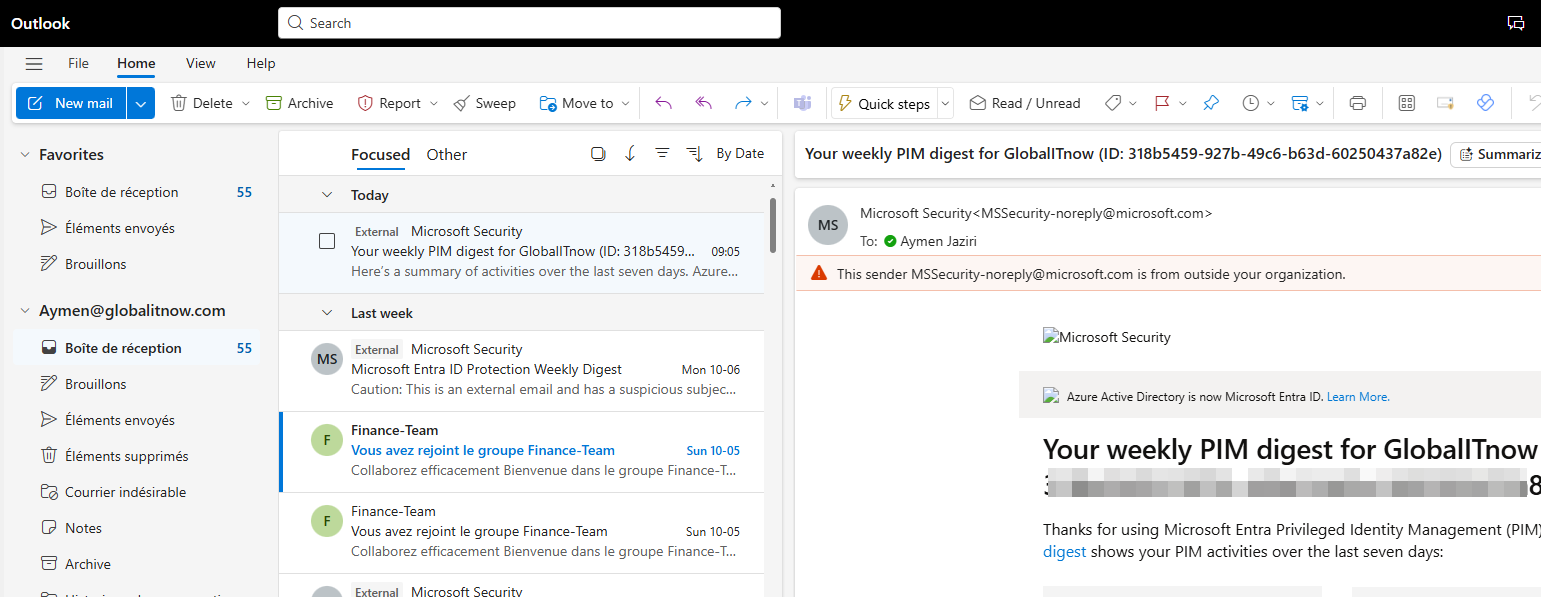

In this example, we’ll delete the last email received from my personal Gmail address.

This is the last email that we’ll delete.

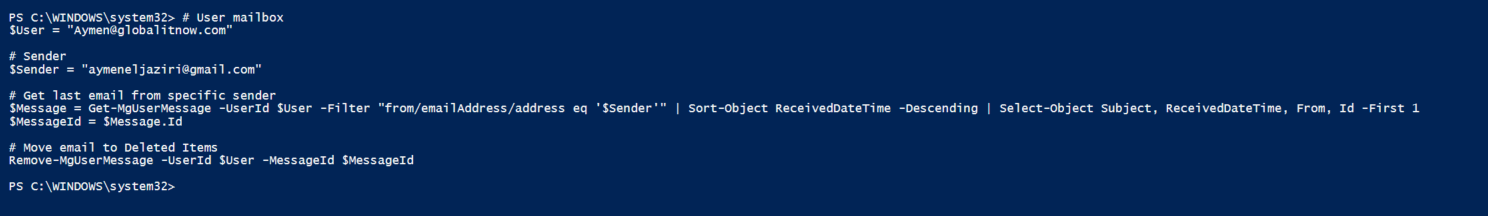

This is the PowerShell Code :

# User mailbox
$User = "Aymen@globalitnow.com"

# Sender
$Sender = "aymeneljaziri@gmail.com"

# Get last email from specific sender
$Message = Get-MgUserMessage -UserId $User -Filter "from/emailAddress/address eq '$Sender'" | Sort-Object ReceivedDateTime -Descending | Select-Object Subject, ReceivedDateTime, From, Id -First 1
$MessageId = $Message.Id

# Move email to Deleted Items
Remove-MgUserMessage -UserId $User -MessageId $MessageId

As you can see here the last email was deleted successfully.

Mail Folders Management

List All Mail Folders

Permissions: Mail.Read

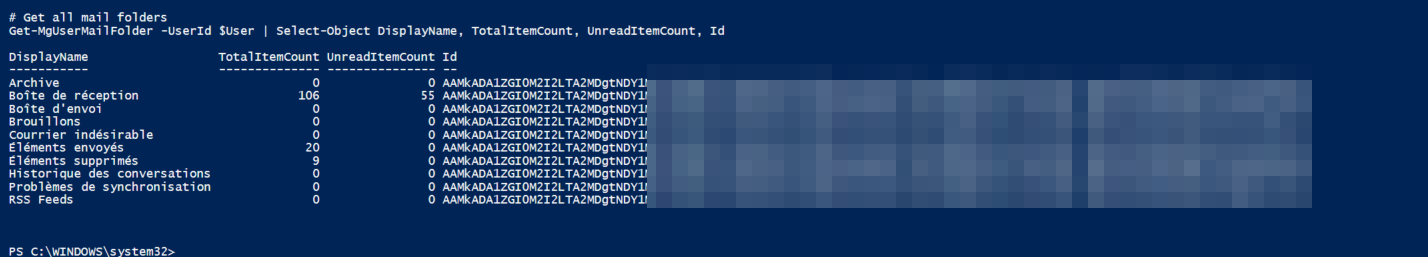

Let’s list all folders inside soecific user mailbox :

# User mailbox
$User = "Aymen@globalitnow.com"

# Get all mail folders
Get-MgUserMailFolder -UserId $User | Select-Object DisplayName, TotalItemCount, UnreadItemCount, Id

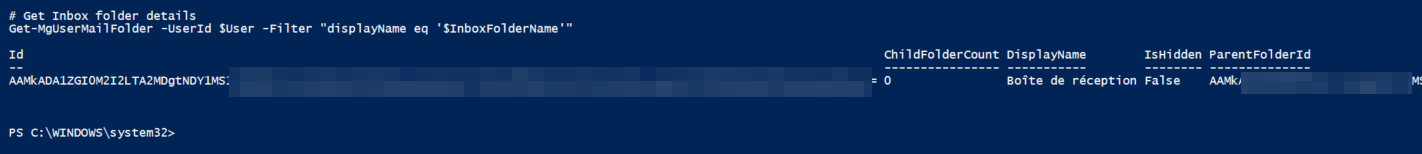

Get Inbox Folder

Permissions: Mail.Read

Let’s get Inbox Folder (Inbox folder name change by mailbox langage, in my case my mailbox langage is French : “Boîte de réception“)

# User mailbox
$User = "Aymen@globalitnow.com"
$InboxFolderName = "Boîte de réception" # French nomination of Inbox, if default langage is US, change it by Inbox

# Get Inbox folder details
Get-MgUserMailFolder -UserId $User -Filter "displayName eq '$InboxFolderName'"

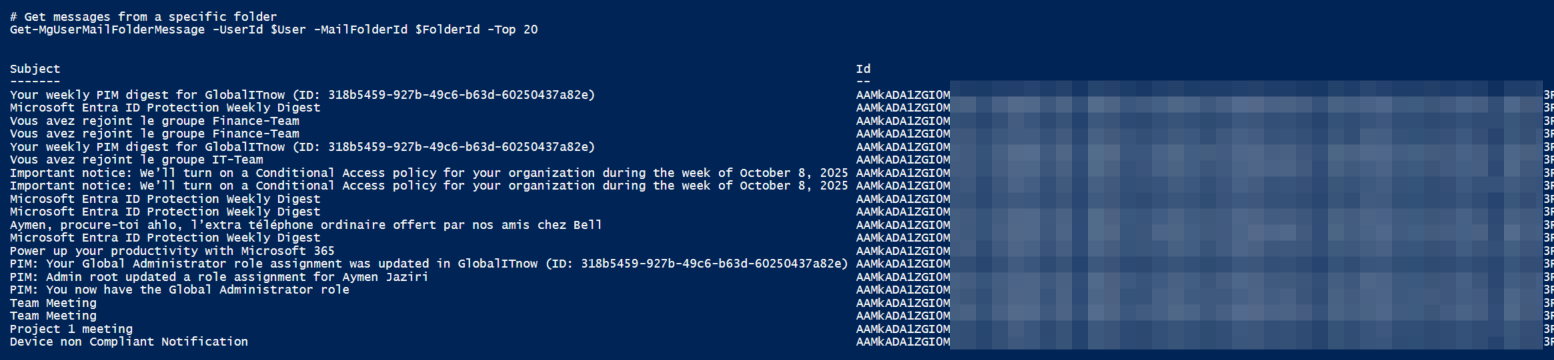

Get Messages from Specific Folder

Permissions : Mail.Read

Let’s get top 20 messages from Inbox folder of specific user.

# User mailbox
$User = "Aymen@globalitnow.com"
$InboxFolderName = "Boîte de réception"

# Get Inbox folder Id
$FolderId = (Get-MgUserMailFolder -UserId $User -Filter "displayName eq '$InboxFolderName'").Id

# Get messages from a specific folder
Get-MgUserMailFolderMessage -UserId $User -MailFolderId $FolderId -Top 20

Calendar Management

List Calendar Events

Permissions: Calendars.Read

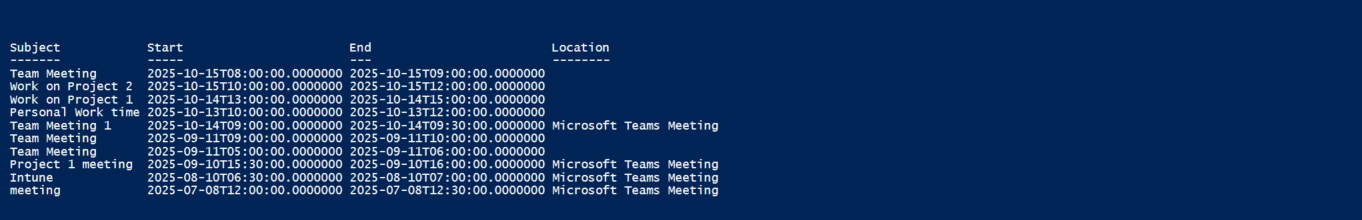

Lets List Calendar Events from specific user calendar.

# User mailbox
$User = "Aymen@globalitnow.com"

# Set the time zone for Canada (Eastern Time)
$headers = @{
    "Prefer" = "outlook.timezone=`"Eastern Standard Time`""
}

# Get upcoming calendar events with Canada (Eastern Time) time zone
Get-MgUserEvent -UserId $User -Top 10 -Headers $headers | Select-Object Subject,
    @{Name="Start";Expression={$_.Start.DateTime}},
    @{Name="End";Expression={$_.End.DateTime}},
    @{Name="Location";Expression={$_.Location.DisplayName}}

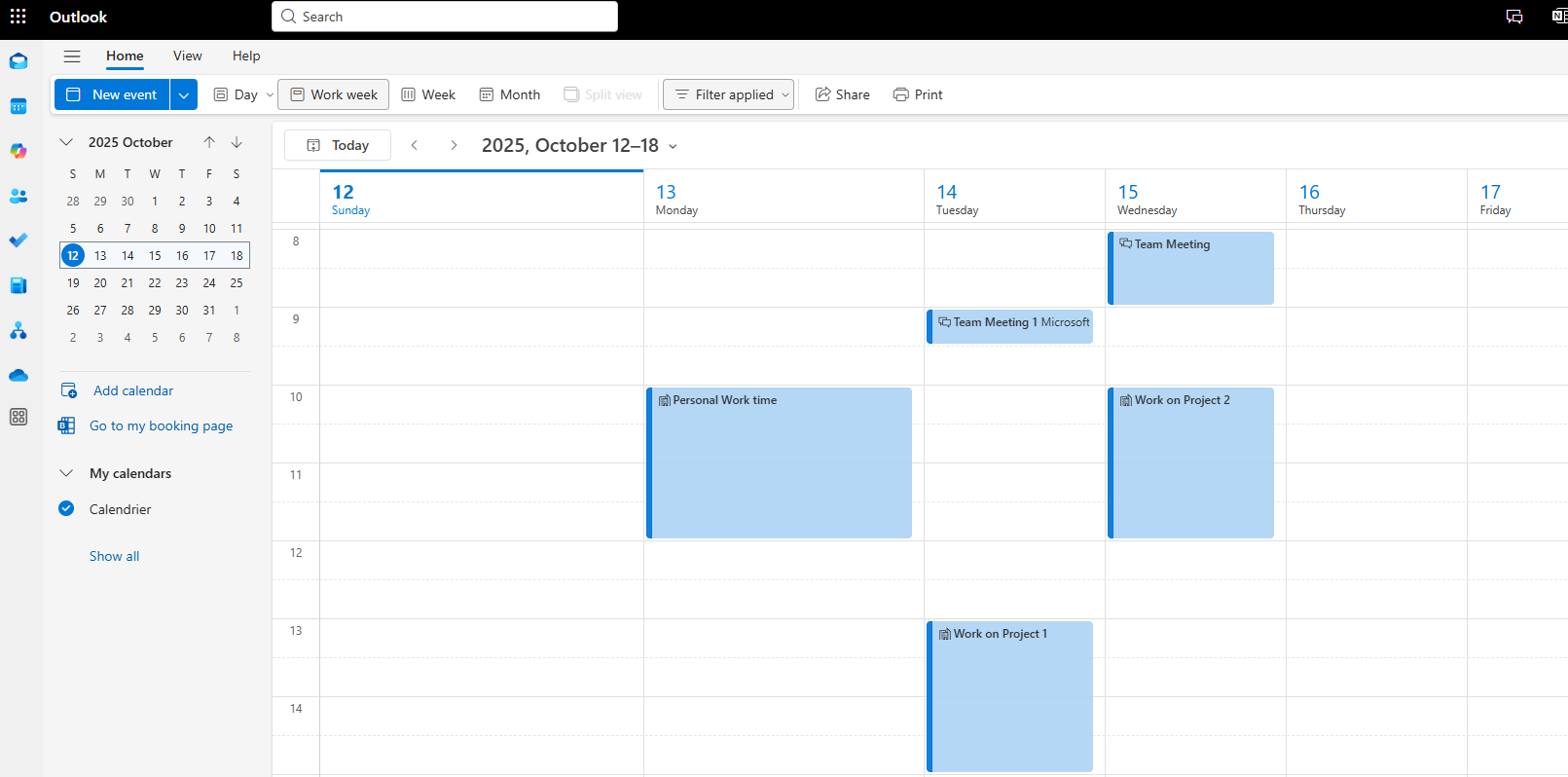

As you can see here is my Calender for the next week :

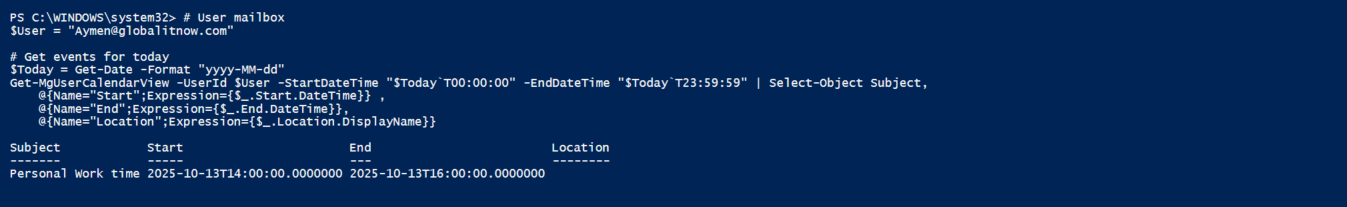

Get Today’s Events

Permissions: Calendars.Read

Lets get today’s events for a specific user.

# User mailbox
$User = "Aymen@globalitnow.com"

# Get events for today
$Today = Get-Date -Format "yyyy-MM-dd"
Get-MgUserCalendarView -UserId $User -StartDateTime "$Today`T00:00:00" -EndDateTime "$Today`T23:59:59" | Select-Object Subject,
    @{Name="Start";Expression={$_.Start.DateTime}} ,
    @{Name="End";Expression={$_.End.DateTime}},
    @{Name="Location";Expression={$_.Location.DisplayName}}

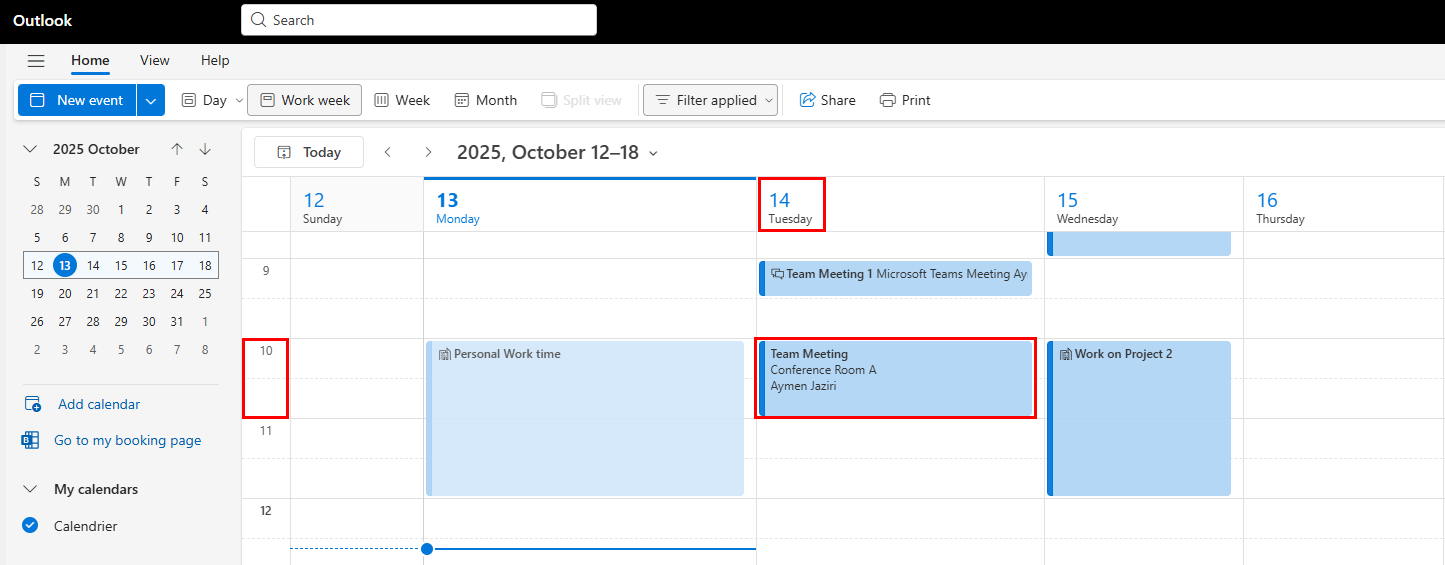

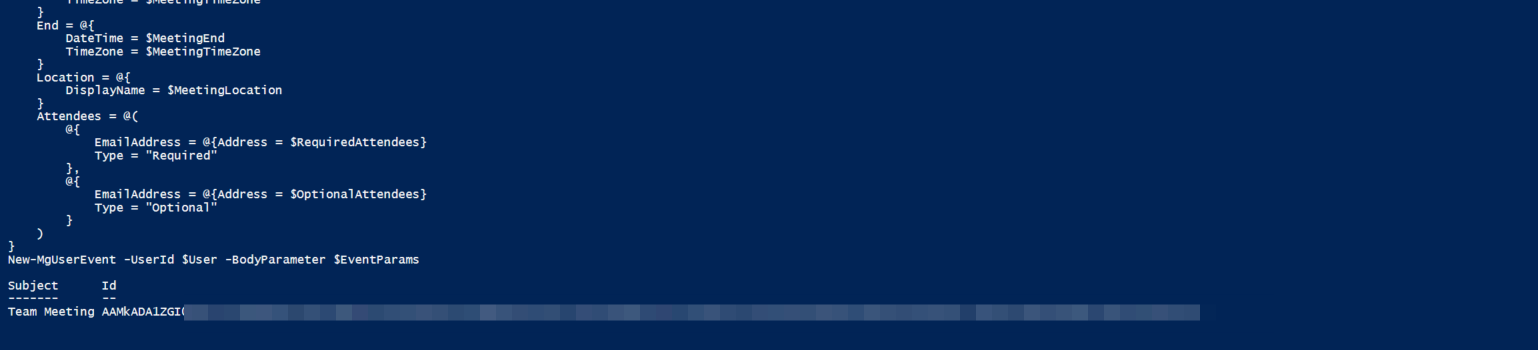

Create Calendar Event (Meeting)

Permissions: Calendars.ReadWrite

Let’s create new Meeting for specific user.

# User mailbox
$User = "Aymen@globalitnow.com"

# Meeting details
$Subject = "Team Meeting"
$Content = "Monthly team sync meeting"
$MeetingStart = "2025-10-14T10:00:00"
$MeetingEnd = "2025-10-14T11:00:00"
$MeetingTimeZone = "Eastern Standard Time"
$MeetingLocation = "Conference Room A"
$RequiredAttendees = "a.Dubois@globalitnow.com" , "c.Richard@globalitnow.com"
$OptionalAttendees = "" # No optional Attendees in this meeting, you can add one or more

# Create a new meeting
$EventParams = @{
    Subject = $Subject
    Body = @{
        ContentType = "HTML"
        Content = $Content
    }
    Start = @{
        DateTime = $MeetingStart
        TimeZone = $MeetingTimeZone
    }
    End = @{
        DateTime = $MeetingEnd
        TimeZone = $MeetingTimeZone
    }
    Location = @{
        DisplayName = $MeetingLocation
    }
    Attendees = @(
        @{
            EmailAddress = @{Address = $RequiredAttendees}
            Type = "Required"
        },
        @{
            EmailAddress = @{Address = $OptionalAttendees}
            Type = "Optional"
        }
    )
}
New-MgUserEvent -UserId $User -BodyParameter $EventParams

Here is the new Meeting created :

Create All-Day Event (Holiday)

Permissions: Calendars.ReadWrite

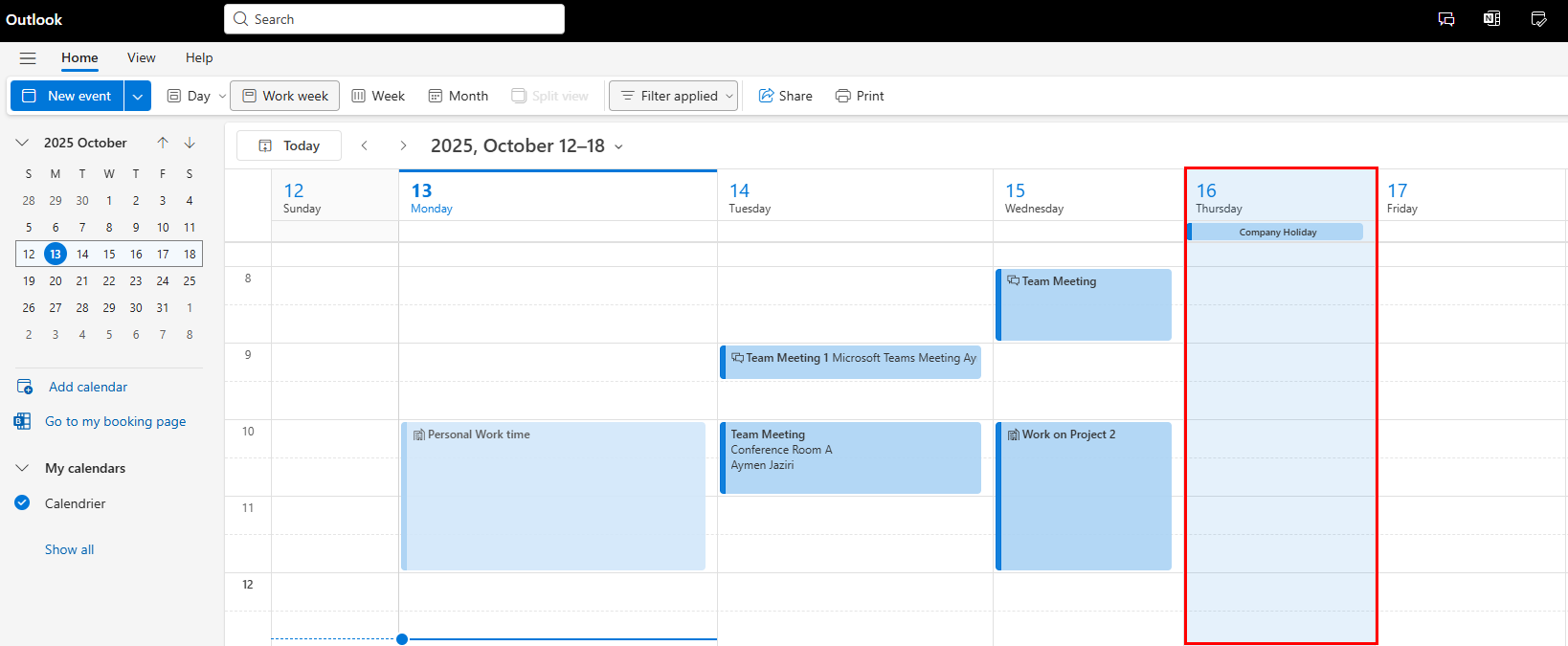

Let’s create Holiday event for the 16th October 2025 :

# User mailbox
$User = "Aymen@globalitnow.com"

# Meeting details
$Subject = "Company Holiday"
$MeetingStart = "2025-10-16T00:00:00"
$MeetingEnd = "2025-10-17T00:00:00"
$MeetingTimeZone = "Eastern Standard Time"

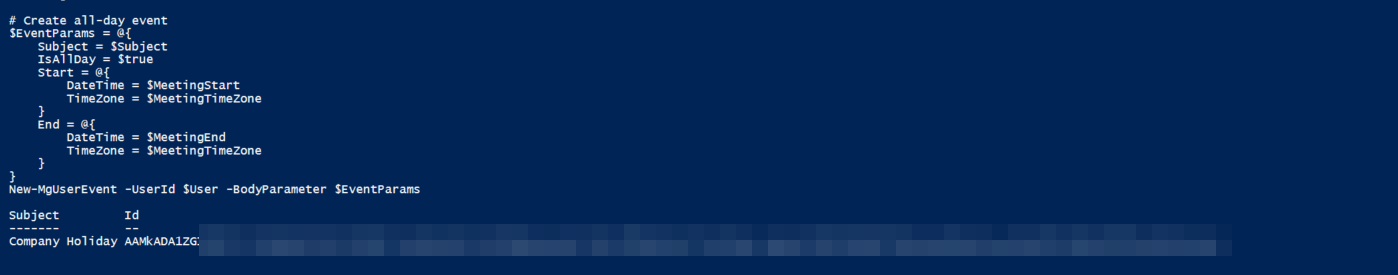

# Create all-day event
$EventParams = @{
    Subject = $Subject
    IsAllDay = $true
    Start = @{
        DateTime = $MeetingStart
        TimeZone = $MeetingTimeZone
    }
    End = @{
        DateTime = $MeetingEnd
        TimeZone = $MeetingTimeZone
    }
}
New-MgUserEvent -UserId $User -BodyParameter $EventParams

Update Calendar Event

Permissions: Calendars.ReadWrite

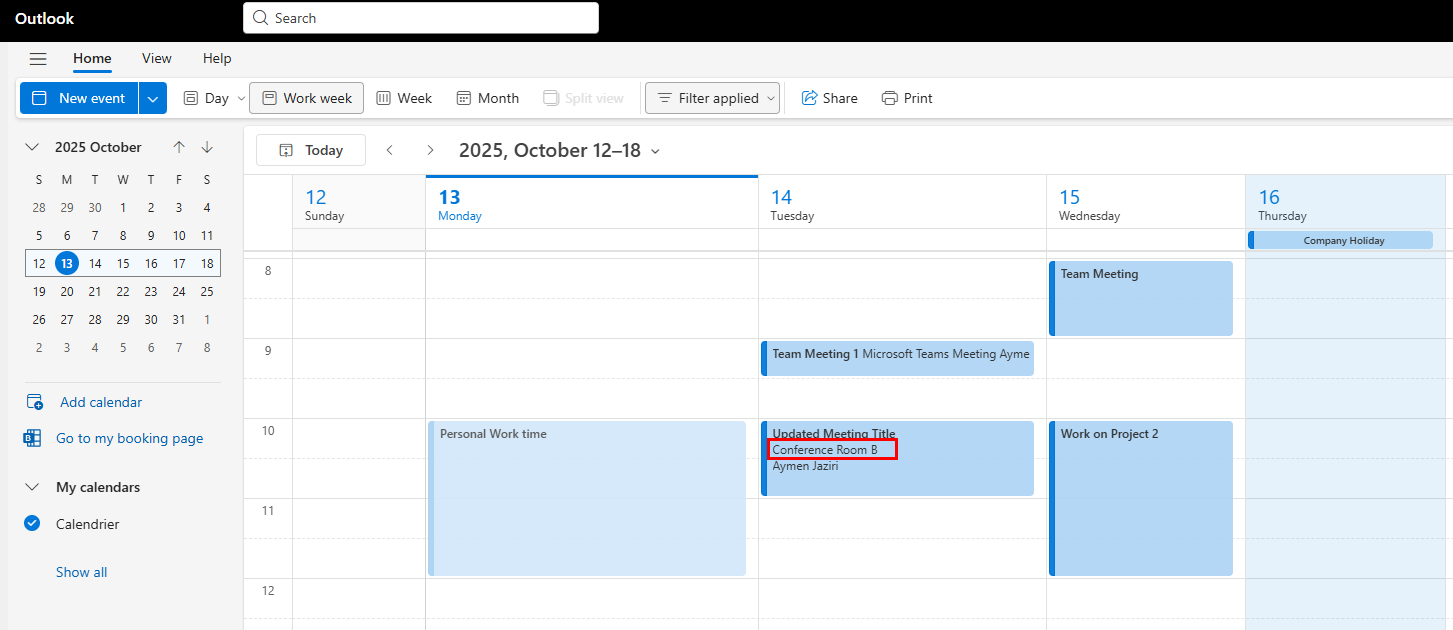

Let’s update the title of the meeting of 14 October at 10:00 and the location from “Conference Room A” to “Conference Room B“

# User mailbox
$User = "Aymen@globalitnow.com"
# Meeting start + end time
$MeetingStart = "2025-10-14T10:00:00"
$MeetingEnd =   "2025-10-14T11:00:00"
$MeetingTimeZone = "Eastern Standard Time"

# Set the time zone for Canada (Eastern Time)
$headers = @{
    "Prefer" = "outlook.timezone=`"Eastern Standard Time`""
}

# Get Event Id
$Event = Get-MgUserEvent -UserId $User -Headers $Headers -All | Where-Object { [DateTime]$_.Start.DateTime  -EQ [DateTime]$MeetingStart }

# Update event details
$UpdateParams = @{
    subject = "Updated Meeting Title"
    location = @{
        displayName = "Conference Room B"
    }
}

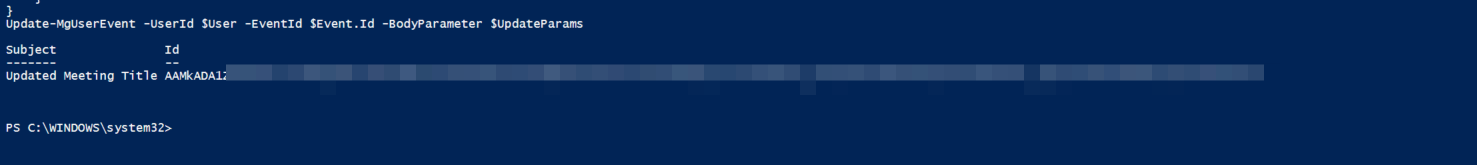

Update-MgUserEvent -UserId $User -EventId $Event.Id -BodyParameter $UpdateParams

Delete Calendar Event

Permissions: Calendars.ReadWrite

Let’s delete the last updated event :

# User mailbox
$User = "Aymen@globalitnow.com"
# Meeting start + end time
$MeetingStart = "2025-10-14T10:00:00"
$MeetingEnd =   "2025-10-14T11:00:00"
$MeetingTimeZone = "Eastern Standard Time"

# Set the time zone for Canada (Eastern Time)
$headers = @{
    "Prefer" = "outlook.timezone=`"Eastern Standard Time`""
}

# Get Event Id
$Event = Get-MgUserEvent -UserId $User -Headers $Headers -All | Where-Object { [DateTime]$_.Start.DateTime  -EQ [DateTime]$MeetingStart }

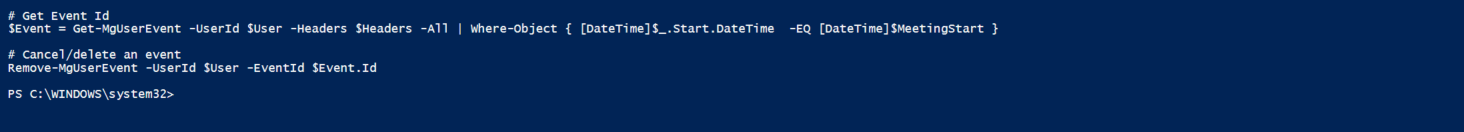

# Cancel/delete an event
Remove-MgUserEvent -UserId $User -EventId $Event.Id

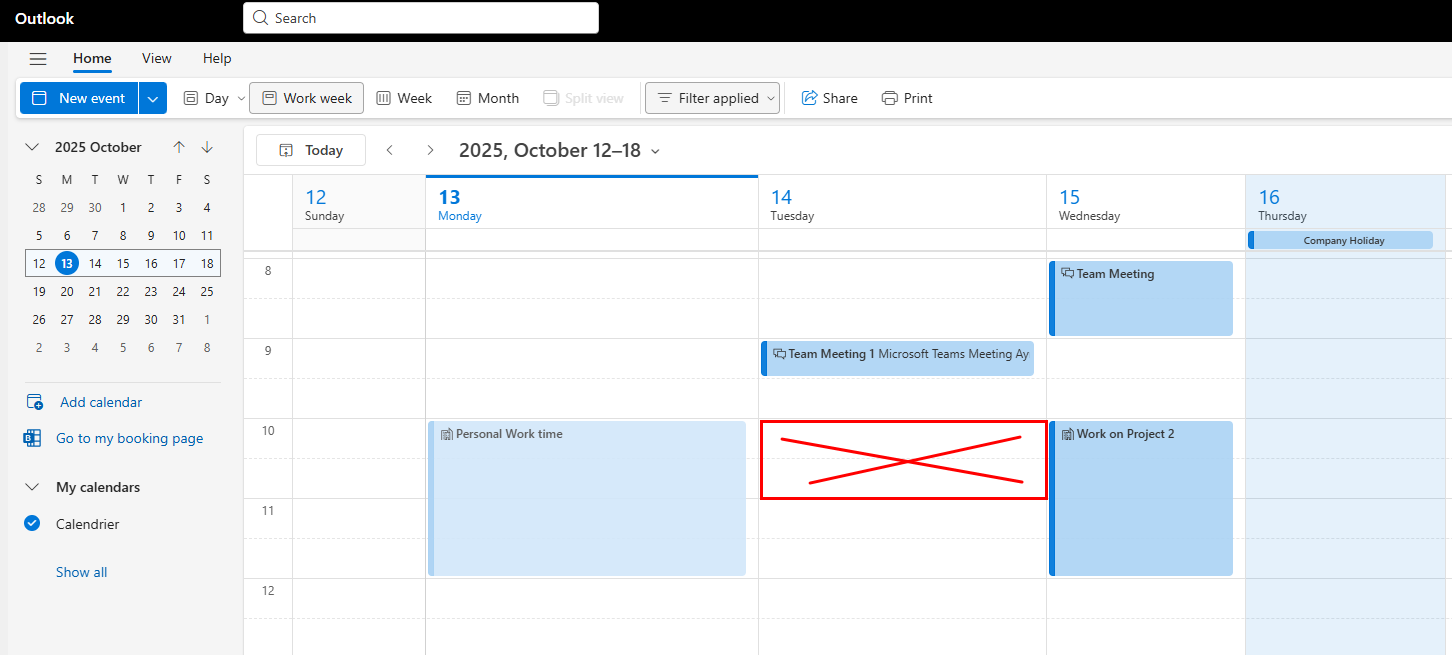

The meeting is deleted as you can see.

Thanks

Aymen EL JAZIRI (Microsoft MVP)
Aymen EL JAZIRI (Microsoft MVP)

Hi, I’m Aymen El Jaziri , a passionate System Administrator and Microsoft MVP, with years of hands-on experience in managing and securing modern IT infrastructures.
This blog is where I share technical guides, automation scripts, product reviews, and real-world solutions that help IT professionals simplify their day-to-day work and stay ahead in a fast-evolving cloud ecosystem.
Whether you’re here to troubleshoot an issue, improve your automation game, or learn new best practices , welcome in my blog !
Let’s build a stronger, smarter IT community together.
Feel free to connect with me on LinkedIn for more content, discussions, or collaboration opportunities.

Thanks

Aymen

Articles: 156

Trending now

Why it’s important to to disable user application consent in Microsoft 365
Intune Security Deep Dive : Enable Tamper Protection to Secure Defender Settings on Windows Devices
Unlock Your Microsoft 365 Tenant after Conditional Access misconfiguration in One Click
Maximize RDS Collection Efficiency : PowerShell Automation for Seamless Maintenance
